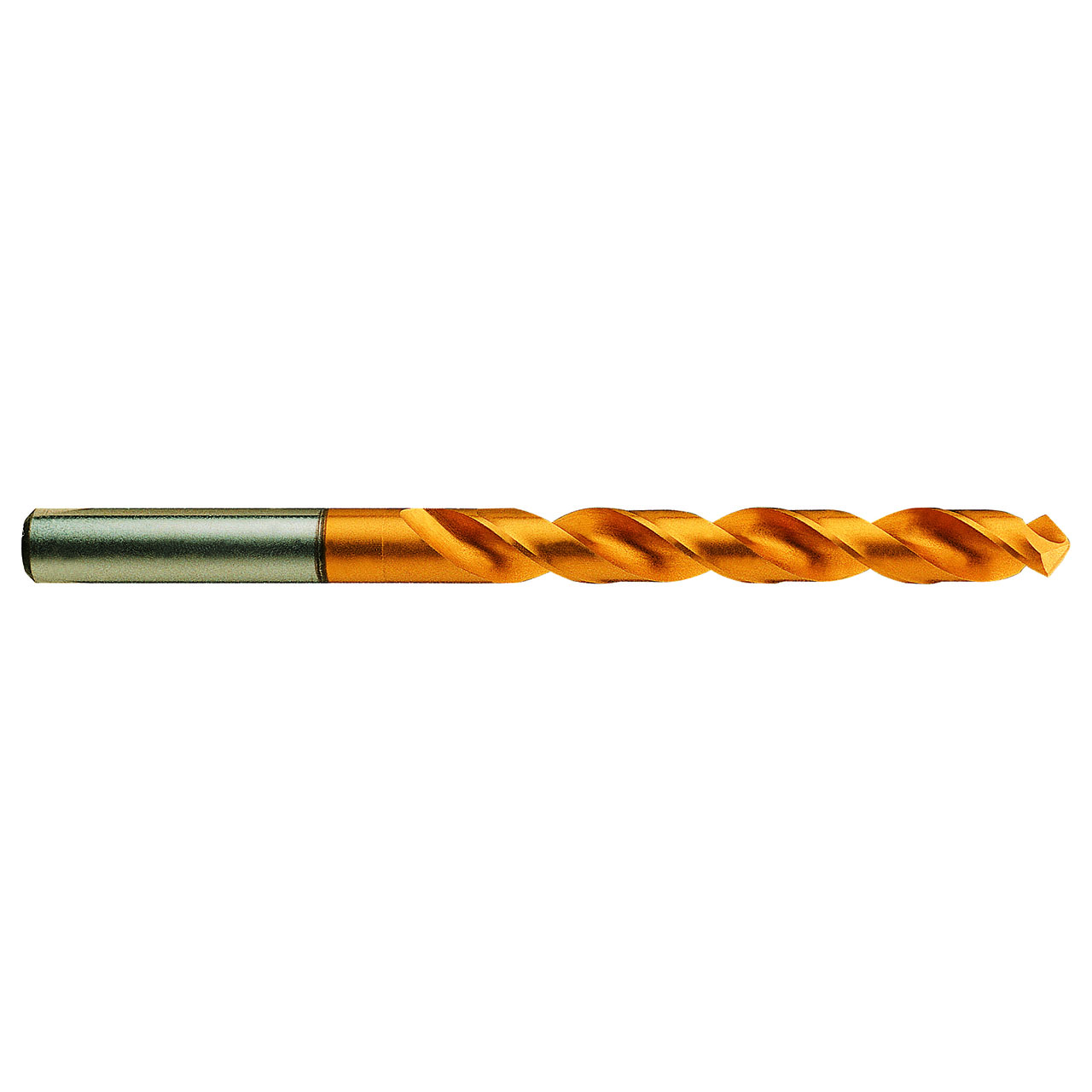

| Manufacturer Part Number | 1091KCN |
| Diameter (Inch) | 3/7" |
| Diameter (Decimal Inch) | 0.4291" |
| Diameter (mm) | 10.90mm |
| Shank Diameter (Inch) | 3/7" |
| Shank Diameter (Decimal Inch) | 0.4291" |
| Shank Diameter (mm) | 10.90mm |
| Flute Length (Inch) | 3-7/10" |
| Flute Length (Decimal Inch) | 3.7008" |
| Flute Length (mm) | 94.00mm |
| Overall Length (Inch) | 5-17/18" |
| Overall Length (Decimal Inch) | 5.9449" |
| Overall Length (mm) | 151.00mm |
| Point Length (Decimal Inch) | 0.1239" |
| Point Length (mm) | 3.15mm |
| Number of Flutes | 2 |
| Series | DJ544 |
| Point Angle | 120 Degree |
| Helix Angle | 38 Degree |
| Length/Diameter | Jobber |
| Shank Tolerance | h7 |
| Coolant Through | No |
| Coating | TiN |
| Material | HSS EX |
| Hole Tolerance | h8 |
| Application | P,M |
| Cutting Direction | Right |
| Blank Standard | DIN6535 |
