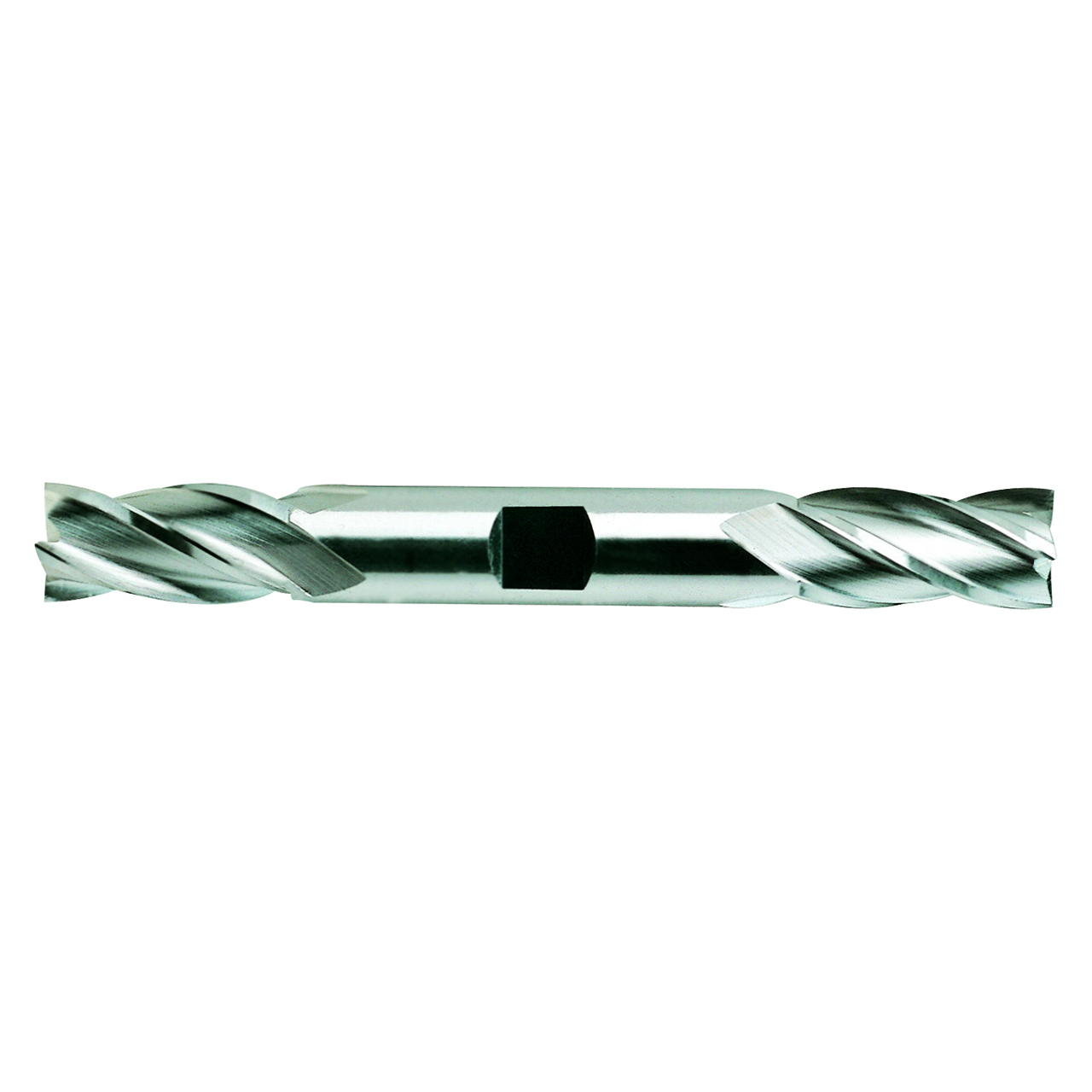

Product Specifications
| EDP Number | 13559TN |
| Diameter (Decimal Inch) | 0.1300" |
| Diameter (Inch) | 1/8" |
| Diameter (mm) | 3.18mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.3750" |
| Length of Cut (Inch) | 3/8" |
| Length of Cut (mm) | 9.53mm |
| Overall Length (Decimal Inch) | 3.0625" |
| Overall-Length-(Inch) | 3-1/16" |
| Overall Length (mm) | 77.79mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 4 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Flat |
| Series | E5024 |
| Coating | TiN |
| Material | Carbide |
| Cut Type | Center |
| End Type | Double End |
| Product Type | Square End Mill |
