Product Specifications
| Manufacturer Part Number | 22002421 |
| Inscribed Circle (Decimal Inch) | 0.375" |
| Inscribed Circle (Inch) | 3/8" |
| Inscribed Circle (mm) | 9.53mm |
| Thickness (Decimal Inch) | 0.187" |
| Thickness (Inch) | 3/16" |
| Thickness (mm) | 4.76mm |
| Corner Radius (Decimal Inch) | 0.031" |
| Corner Radius (Inch) | 1/32" |
| Corner Radius (mm) | 0.80mm |
| Edge Length (Decimal Inch) | 0.224" |
| Edge Length (Inch) | 15/67" |
| Edge Length (mm) | 5.69mm |
| Chipbreaker Application | Medium Roughing and first choice for cast |
| Grade | YG3115 |
| Material | Carbide |
| Coating Process | CVD |
| Sqaure Size (Decimal Inch) | TiCN-Al2O3 |
| Cutting Edge Count | 6 |

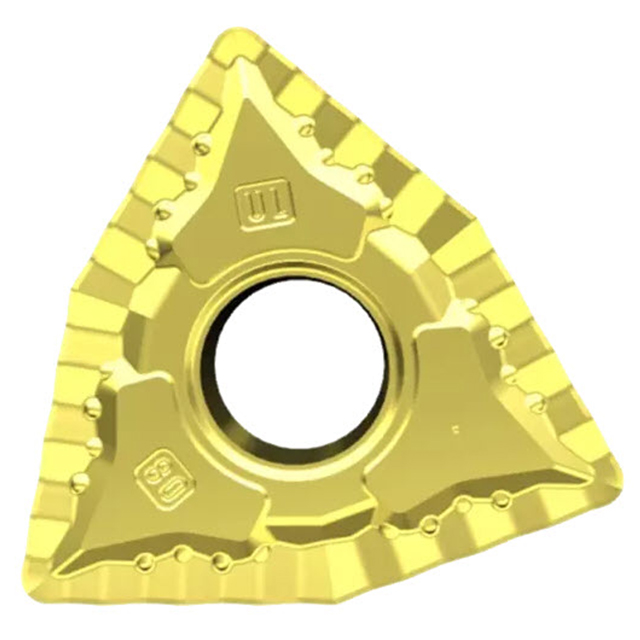

| Shape | Trigon |
| Product Type | Turning Negative Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Inscribed Circle (Decimal Inch):
0.3750";Inscribed Circle (Inch)=3/8""
Inscribed Circle (mm):
9.53mm
Thickness:
0.1870";Thickness (Inch)=3/16""
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32";Corner Radius (Decimal Inch)=0.0310""
Corner Radius (mm):
0.80mm
Grade:
YG3115
Material:
Carbide
Coating:
TiCN-Al2O3
