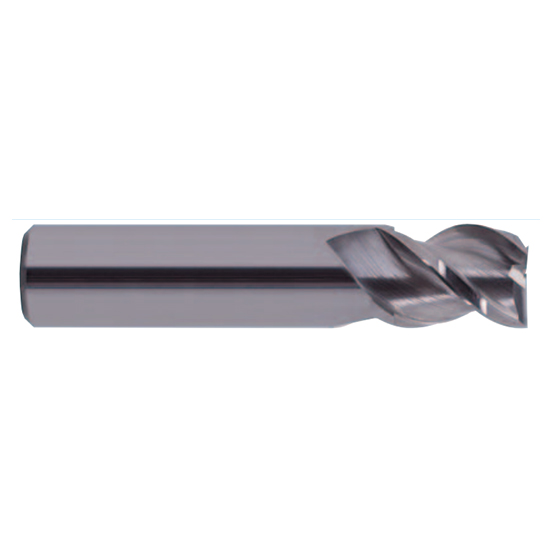

Features
- 45 Degree Helix
- Designed to machine aluminium at high speed condition
- Improved surface roughness-cylindrical margin which is controlled tightly
- Excellent chip removal - higher rake angle, higher helix angle(45 Degree), bigger chip pocket.
- Mirror face-excellent surface finish.
- Mill Diameter Tolerance: 0-.0012"; Shank Diameter Tolerance: 0-.0003"
Product Specifications
| Brand | YG1 |
| Mill Diameter (Inch) | 3/4" |
| Shank Diameter (Inch) | 3/4" |
| Length of Cut (Inch) | 1" |
| Overall Length (Inch) | 3" |
| Number of Flutes | 3 |
| Finish/Coating | Bright |
| Tool Material | Carbide |
| Center Cutting (yes/no) | Yes |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right |
| MPN | 25598 |
| Helix Angle | 45 Degree |
| Series | E5980 |
| Country of Origin | Korea |
| End Type | Plain |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/4"
Shank Diameter (Inch):
3/4"
Length of Cut (Inch):
1"
Overall Length (Inch):
3"
Number of Flutes:
3
Finish/Coating:
Bright
Tool Material:
Carbide
Center Cutting:
Yes
Single or Double End:
Single
Cutting Direction:
Right Hand
Ships:
Same Business Day if Ordered by 12:30PM PT
