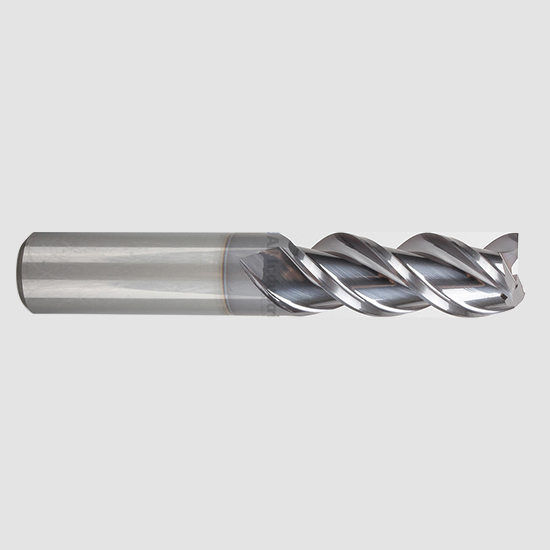

Features
- High velocity milling of aluminum & other non-ferrous materials
- 3 flute and 45° helix allow harmonic balance at high speed condition and smooth cutting.
- Improved surface roughness-cylindrical margin which is controlled tightly
- Maximum-metal removal rate.
- Superior chip evacuation.
- Mirror face-excellent surface finish.
- Mill Diameter Tolerance: 0-.0005"; Shank Diameter Tolerance: 0-.0003"
Product Specifications
| Brand | YG1 |
| Mill Diameter (Inch) | 3/16" |
| Shank Diameter (Inch) | 3/16" |
| Length of Cut (Inch) | 9/16" |
| Overall Length (Inch) | 2" |
| Number of Flutes | 3 |
| Finish/Coating | TiCN |
| Tool Material | Carbide |
| Center Cutting (yes/no) | Yes |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right |
| MPN | 28565TC |
| Helix Angle | 45° |
| Series | E5981 |
| Country of Origin | Korea |
| End Type | Plain |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/16"
Shank Diameter (Inch):
3/16"
Length of Cut (Inch):
9/16"
Overall Length (Inch):
2"
Number of Flutes:
3
Finish/Coating:
TiNC
Tool Material:
Carbide
Center Cutting:
Yes
Single or Double End:
Single
Cutting Direction:
Right Hand
