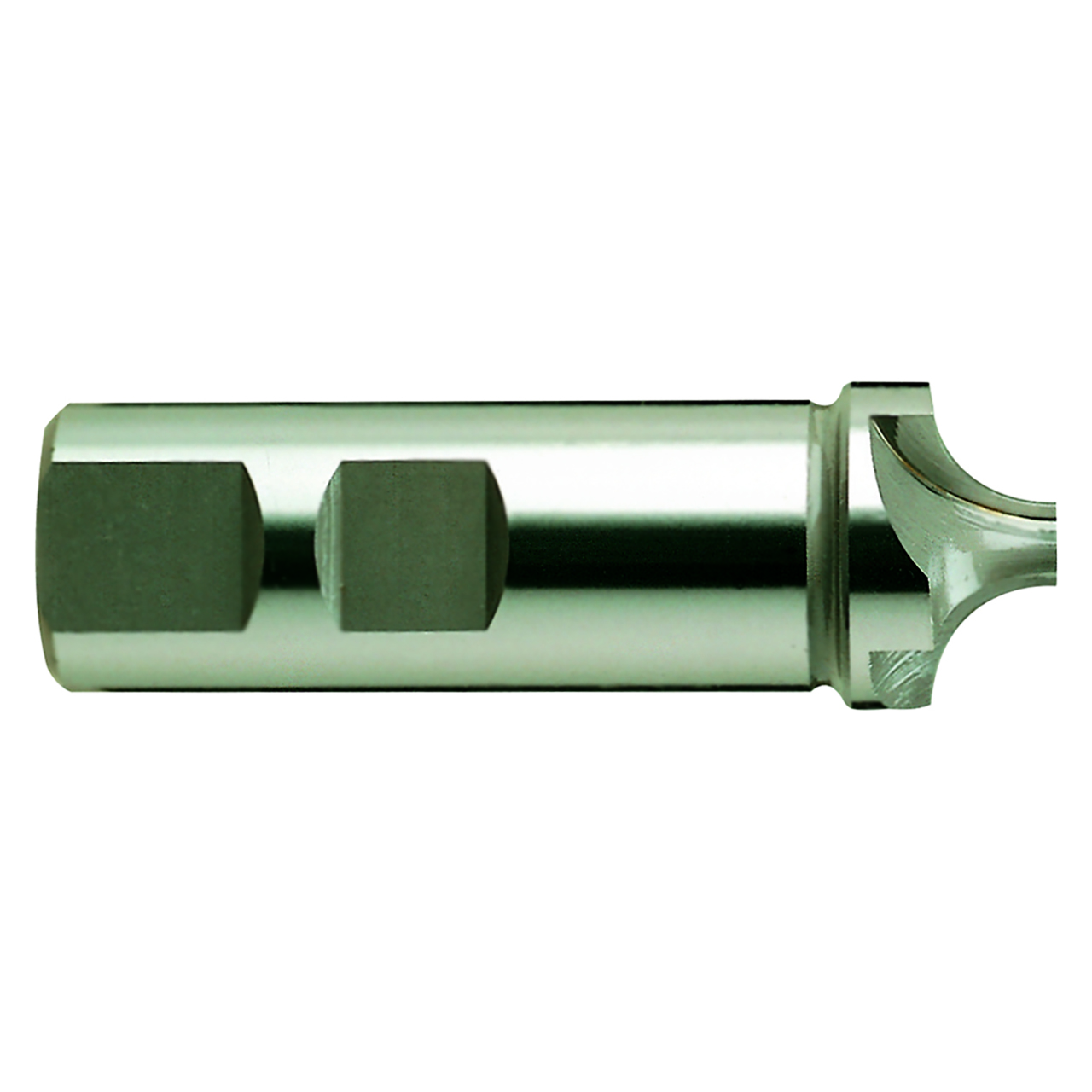

Product Specifications
| EDP Number | 29258CC |
| Diameter (Decimal Inch) | 0.2500" |
| Diameter (Inch) | 1/4" |
| Diameter (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Decimal Inch) | 1.0000" |
| Length of Cut (Inch) | 1" |
| Length of Cut (mm) | 25.40mm |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (Inch) | 3" |
| Overall Length (mm) | 76.20mm |
| Series | E2237 |
| Rounding Radius | 1/4" |
| Shank Style | Flat |
| Number of Flutes | 4 |
| Coating | TiCN |
| Pilot Diameter | 3/8" |
| Cut Type | Corner Rounding |
| Cutting Direction | Right |
| Type | Corner Rounding End Mills |
| Application | P |
| Material | HSSCo8 |
