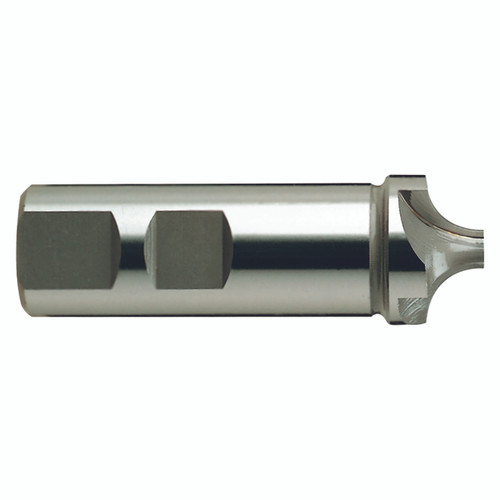

YG1 29277CF | 0.7500" Diameter x 1.0000" Shank x 4.0000" OAL x 1.8750" LOC 4 Flute TiAIN F Coated HSSCo8 Corner Rounding End Mill

$207.87
SKU:
25046016
Weight:
1.32 LBS
Shipping:
Free Shipping

Product Specifications
EDP Number29277CF
Diameter (Decimal Inch)0.7500"
Diameter (Inch)3/4"
Diameter (mm)19.05mm
Shank Diameter (Decimal Inch)1.0000"
Shank Diameter (Inch)1"
Shank Diameter (mm)25.40mm
Length of Cut (Decimal Inch)1.8750"
Length of Cut (Inch)1-7/8"
Length of Cut (mm)47.63mm
Overall Length (Decimal Inch)4.0000"
Overall Length (Inch)4"
Overall Length (mm)101.60mm
SeriesE2237
Rounding Radius3/4"
Shank StyleFlat
Number of Flutes4
CoatingTiAIN F
Pilot Diameter5/16"
Cut TypeCorner Rounding
Cutting DirectionRight
TypeCorner Rounding End Mills
ApplicationP
MaterialHSSCo8
