Product Specifications
| EDP Number | 33560TC |
| Diameter (Decimal Inch) | 0.1400" |
| Diameter (Inch) | 9/64" |
| Diameter (mm) | 3.57mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Decimal Inch) | 0.3125" |
| Length of Cut (Inch) | 5/16" |
| Length of Cut (mm) | 7.94mm |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall-Length-(Inch) | 2" |
| Overall Length (mm) | 50.80mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 4 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Plain |
| Series | E5023 |
| Coating | TiCN |
| Material | Carbide |
| Cut Type | Center |
| End Type | Double End |

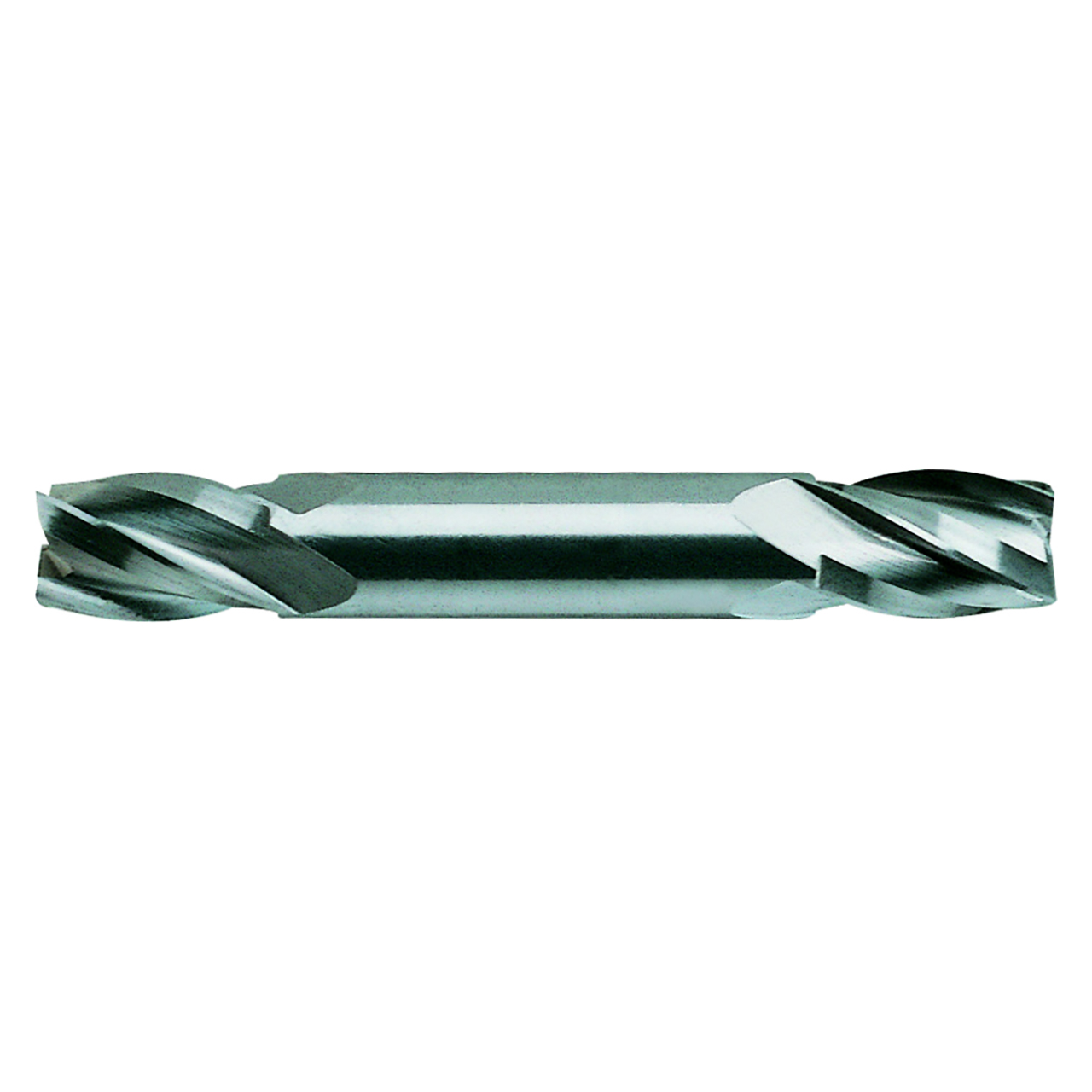

| Product Type | Square End Mill |
