Product Specifications
| EDP Number | 41107 |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (Inch) | 3/4" |
| Diameter (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Decimal Inch) | 1.3125" |
| Length of Cut (Inch) | 1-5/16" |
| Length of Cut (mm) | 33.34mm |
| Overall Length (Decimal Inch) | 3.3125" |
| Overall Length (Inch) | 3-5/16" |
| Overall Length (mm) | 84.14mm |
| Ball Nose Radius (Decimal Inch) | 0.3750" |
| Ball Nose Radius (Inch) | 3/8" |
| Ball Nose Radius (mm) | 9.53mm |
| Round Radius (Inch) | 3/8" |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 30 Degree |
| Material | HSS |
| Coating | Bright |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Corner Type | Ball Nose |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1110 |
| End Type | Single End |
| Length Type | Regular |

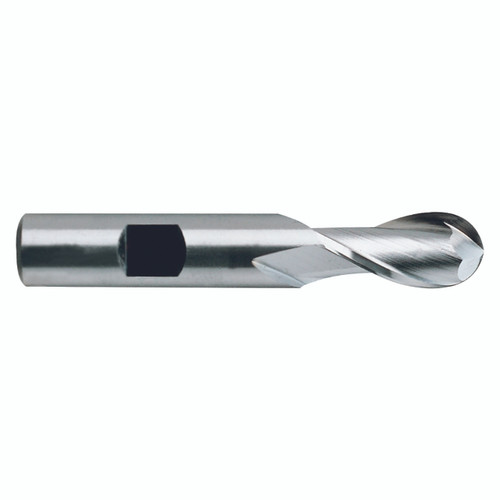

| Product Type | Ball Nose End Mill |
