Product Specifications
| EDP Number | 41439 |
| Diameter (Decimal Inch) | 1.2500" |
| Diameter (Inch) | 1-1/4" |
| Diameter (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 1.6250" |
| Length of Cut (Inch) | 1-5/8" |
| Length of Cut (mm) | 41.28mm |
| Overall Length (Decimal Inch) | 3.8750" |
| Overall Length (Inch) | 3-7/8" |
| Overall Length (mm) | 98.43mm |
| Ball Nose Radius (Decimal Inch) | 0.6250" |
| Ball Nose Radius (mm) | 15.88mm |
| Series | E2110 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 2 |
| Ball Nose Radius (Inch) | 5/8" |
| Coating | Bright |
| Cut Type | Center Cutting |
| Cutting Direction | Right |

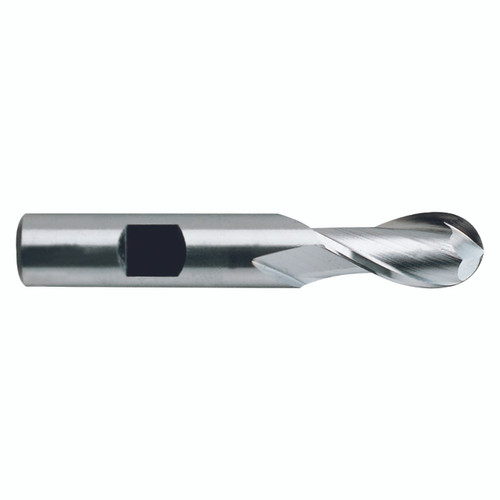

| Type | Ball Nose End Mill |
| Application | P |
| Material | HSSCo8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1-1/4"
Mill Diameter (Decimal Inch):
1.2500"
Mill Diameter (mm):
31.75mm
Number of Flutes:
2
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Material:
HSSCo8
Shank Type:
Flat
Overall Length (Inch):
3-7/8"
Overall Length (Decimal Inch):
3.8750"
Overall Length (mm):
98.43mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Finish/Coating:
Bright
Cutting Direction:
HSSCo8 & HSS 2 Flute Regular Length Ball nose
Helix Angle (Degree):
30 Degree
interval quantity:
1
