Product Specifications
| EDP Number | 41593TH |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (Inch) | 1/2" |
| Diameter (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Decimal Inch) | 1.0000" |
| Length of Cut (Inch) | 1" |
| Length of Cut (mm) | 25.40mm |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall-Length-(Inch) | 3" |
| Overall Length (mm) | 76.20mm |
| Ball Nose Radius (Inch) | 1/4" |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Plain |
| Series | E5249 |
| Coating | Bright |
| Material | Carbide |
| Cut Type | Center |
| Length Type | Regular |
| End Type | Single End |

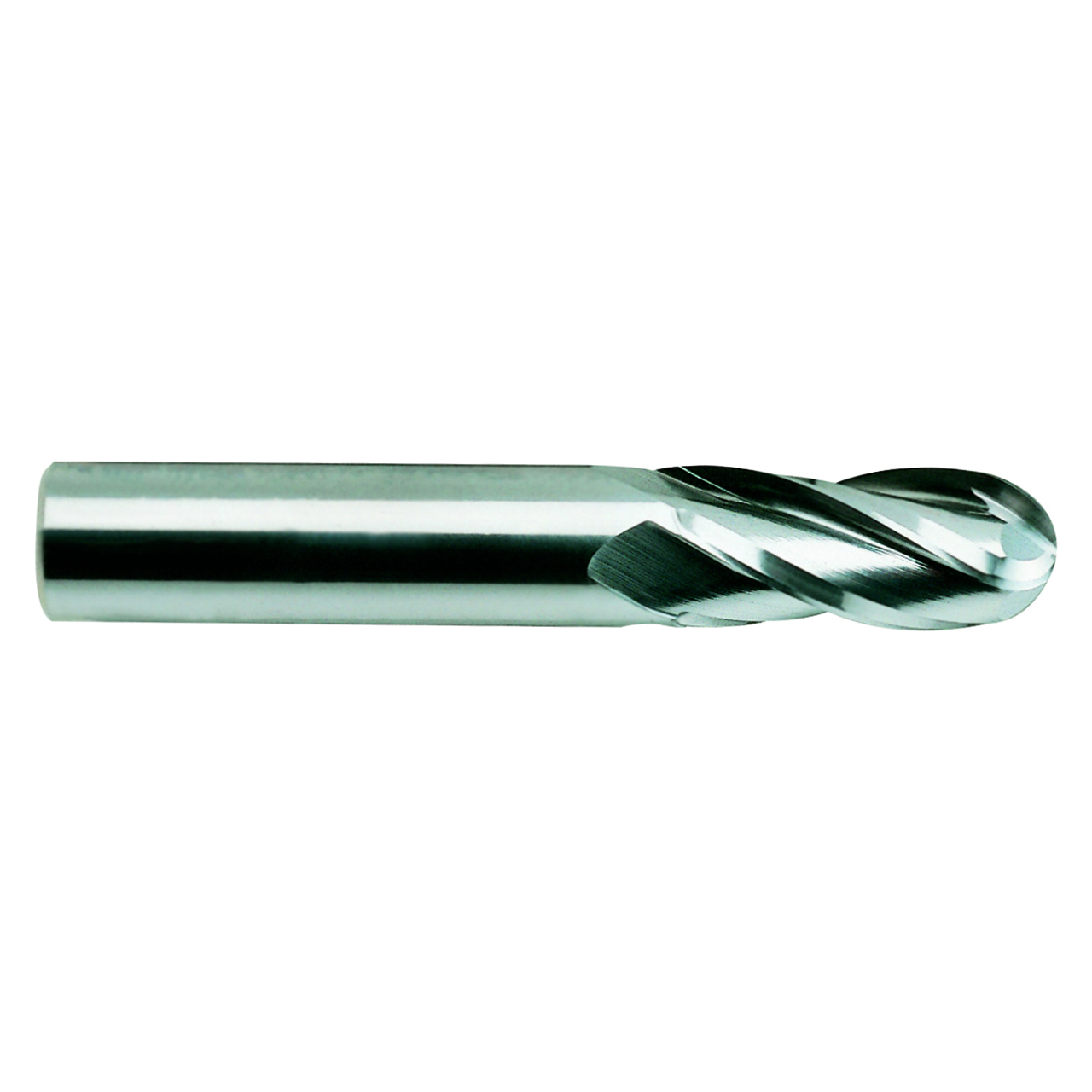

| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Finish/Coating:
Plain
Cutting Direction:
Single End
Single or Double End:
Ball Nose
Application:
Regular
interval quantity:
1
