Product Specifications
| EDP Number | 48588TC |
| Diameter (Decimal Inch) | 0.4400" |
| Diameter (Inch) | 7/16" |
| Diameter (mm) | 11.11mm |
| Shank Diameter (Decimal Inch) | 0.4375" |
| Shank Diameter (Inch) | 7/16" |
| Shank Diameter (mm) | 11.11mm |
| Length of Cut (Decimal Inch) | 0.5625" |
| Length of Cut (Inch) | 9/16" |
| Length of Cut (mm) | 14.29mm |
| Overall Length (Decimal Inch) | 2.7500" |
| Overall-Length-(Inch) | 2-3/4" |
| Overall Length (mm) | 69.85mm |
| Ball Nose Radius (Inch) | 7/32" |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 4 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Plain |
| Series | E5252 |
| Coating | Bright |
| Material | Carbide |
| Cut Type | Center |
| Length Type | Stub |
| End Type | Double End |

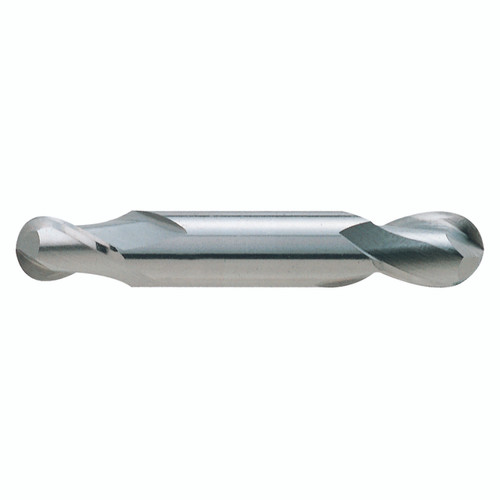

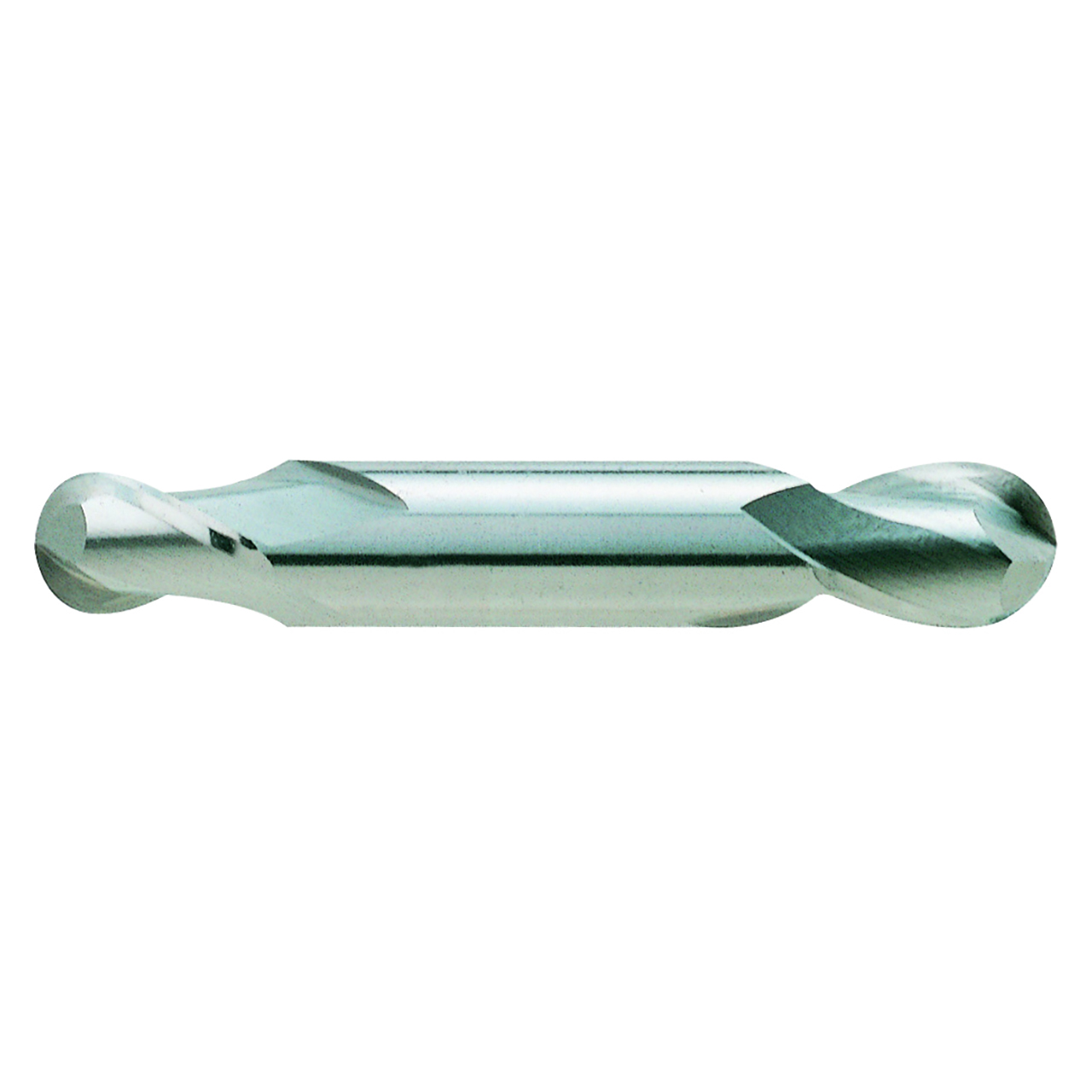

| Product Type | Ball End Mill |
