Product Specifications
| EDP Number | 49014HE |
| Diameter (Decimal Inch) | 0.1250" |
| Diameter (Inch) | 1/8" |
| Diameter (mm) | 3.18mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Decimal Inch) | 0.1875" |
| Length of Cut (Inch) | 3/16" |
| Length of Cut (mm) | 4.76mm |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (Inch) | 2" |
| Overall Length (mm) | 50.80mm |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 30 Degree |
| Material | HSS |
| Coating | AlTiN |
| Shank Style | Plain |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1001 |
| End Type | Double End |
| Length Type | Stub |

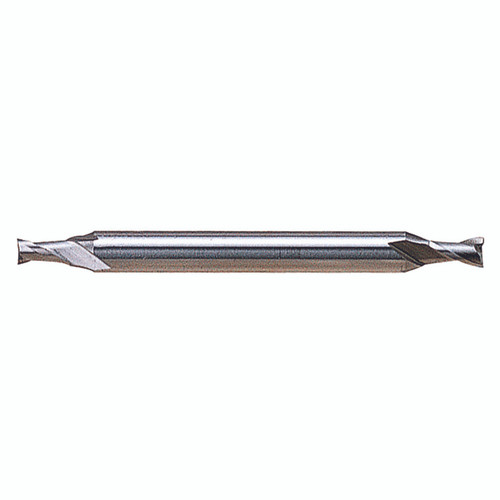

| Product Type | Square End Mill |
