Product Specifications
| EDP Number | 50004HF |
| Diameter (Decimal Inch) | 0.0469" |
| Diameter (Inch) | 3/64" |
| Diameter (mm) | 1.19mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Decimal Inch) | 0.1406" |
| Length of Cut (Inch) | 9/64" |
| Length of Cut (mm) | 3.57mm |
| Overall Length (Decimal Inch) | 2.2500" |
| Overall Length (Inch) | 2-1/4" |
| Overall Length (mm) | 57.15mm |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 39 Degree |
| Material | HSS |
| Coating | TiAlN-Futura |
| Shank Style | Plain |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1003 |
| End Type | Double End |
| Length Type | Regular |

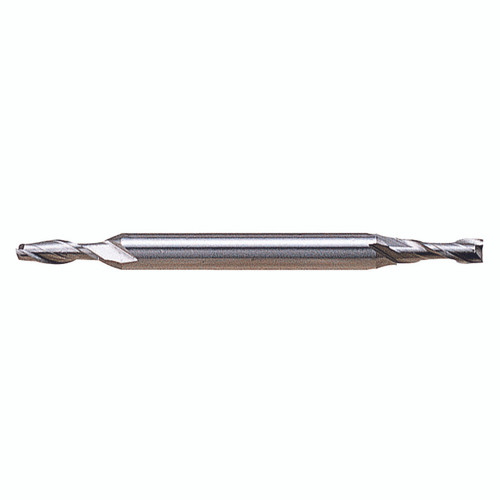

| Product Type | Miniature End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/64"
Mill Diameter (Decimal Inch):
0.0469"
Mill Diameter (mm):
1.19mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
3/64"
Shank Diameter (mm):
4.76mm
Length of Cut (Inch):
9/64"
Length of Cut (Decimal Inch):
0.1406"
Length of Cut (mm):
3.57mm
Overall Length (Inch):
2-1/4"
Overall Length (Decimal Inch):
2.2500"
Overall Length (mm):
57.15mm
Number of Flutes:
2
Single or Double End:
Double End
Material:
HSS
Finish/Coating:
TiAlN-Futura
