Product Specifications
| EDP Number | 52565 |
| Diameter (Decimal Inch) | 0.1900" |
| Diameter (Inch) | 3/16" |
| Diameter (mm) | 4.76mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Decimal Inch) | 1.1250" |
| Length of Cut (Inch) | 1-1/8" |
| Length of Cut (mm) | 28.58mm |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall-Length-(Inch) | 3" |
| Overall Length (mm) | 76.20mm |
| Ball Nose Radius (Inch) | 3/32" |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Cutting Direction | Right |
| Application | p |
| Shank Style | Plain |
| Series | E5018 |
| Coating | Bright |
| Material | Carbide |
| Cut Type | Center |
| End Type | Single End |

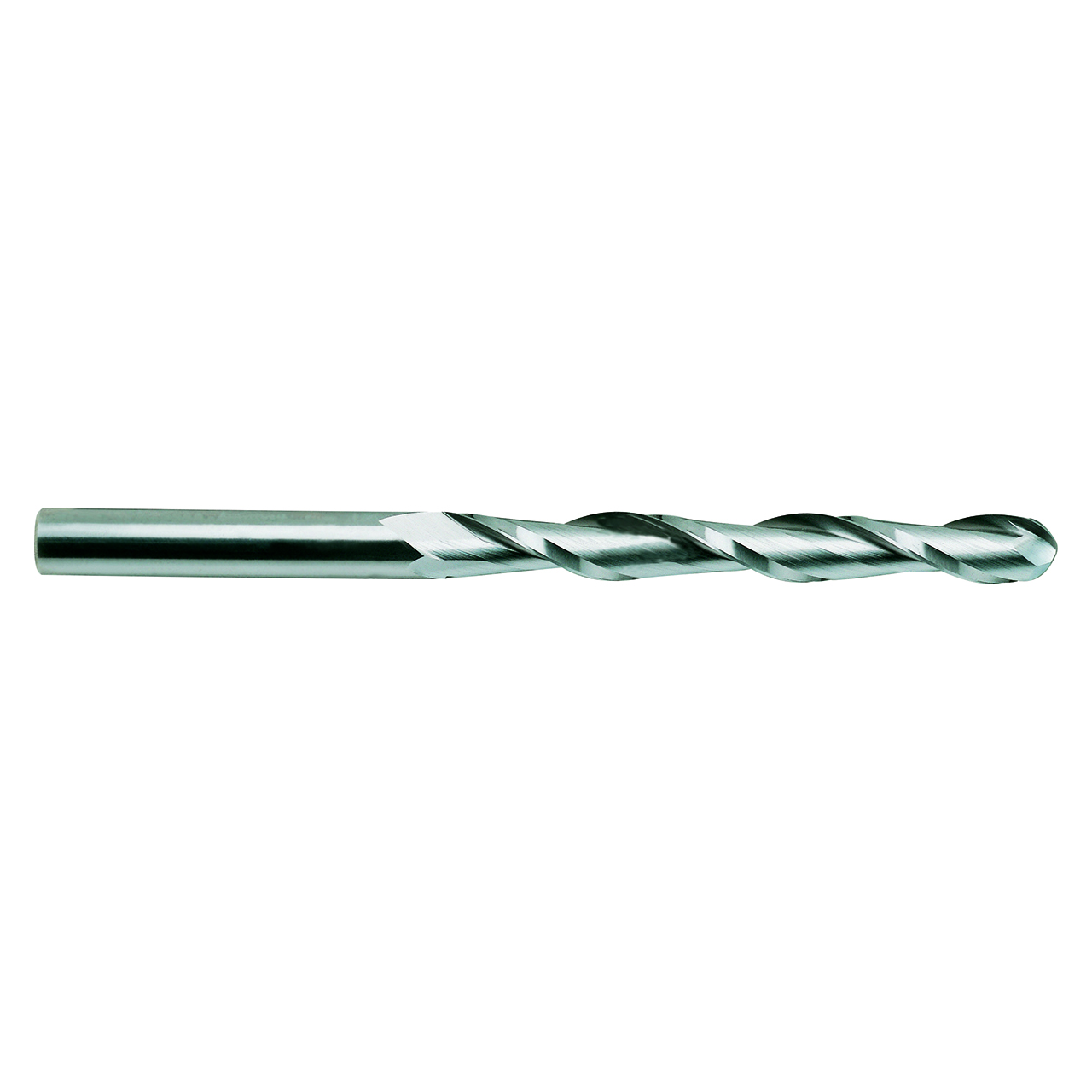

| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1900"
Mill Diameter (mm):
4.76mm
Number of Flutes:
2
Length of Cut (Inch):
1-1/8"
Length of Cut (Decimal Inch):
1.1250"
Length of Cut (mm):
28.58mm
Material:
Carbide
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Finish/Coating:
Plain
Cutting Direction:
Right
Single or Double End:
Single
Helix Angle:
0
