Product Specifications
| EDP Number | 56576TN |
| Diameter (Decimal Inch) | 0.2813" |
| Diameter (Inch) | 9/32" |
| Diameter (mm) | 7.14mm |
| Shank Diameter (Decimal Inch) | 0.3125" |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (mm) | 7.94mm |
| Length of Cut (Decimal Inch) | 0.8125" |
| Length of Cut (Inch) | 13/8" |
| Length of Cut (mm) | 20.64mm |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (mm) | 63.50mm |
| Corner Radius (Decimal Inch) | 0.0170" |
| Corner Radius (Inch) | 19/44" |
| Corner Radius (mm) | 0.43mm |
| Number of Flutes | 3 |
| Series | E5074 |
| Helix Angle (Degree) | 35 Degree |
| Coating | TiN |
| Material | Carbide |
| Shank Style | Plain |
| Cut Type | Center Cut |
| Length Type | Regular |
| Application | P,M |
| Cutting Direction | Right Hand |

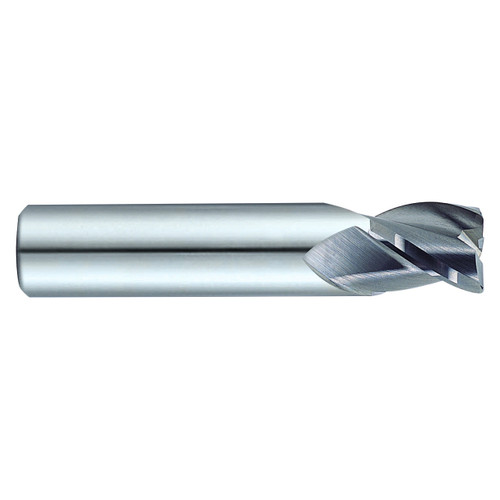

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
