Product Specifications
| EDP Number | 58588TN |
| Diameter (Decimal Inch) | 0.4400" |
| Diameter (Inch) | 7/16" |
| Diameter (mm) | 11.11mm |
| Shank Diameter (Decimal Inch) | 0.4375" |
| Shank Diameter (Inch) | 7/16" |
| Shank Diameter (mm) | 11.11mm |
| Length of Cut (Decimal Inch) | 2.0000" |
| Length of Cut (Inch) | 2" |
| Length of Cut (mm) | 50.80mm |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall-Length-(Inch) | 4" |
| Overall Length (mm) | 101.60mm |
| Helix Angle (Degree) | 45 Degree |
| Number of Flutes | 5 |
| Cutting Direction | Right |
| Application | P,M |
| Shank Style | Plain |
| Series | E5068 |
| Coating | Bright |
| Material | Carbide |
| Cut Type | Center |
| Length Type | Medium & Long |
| End Type | Single End |

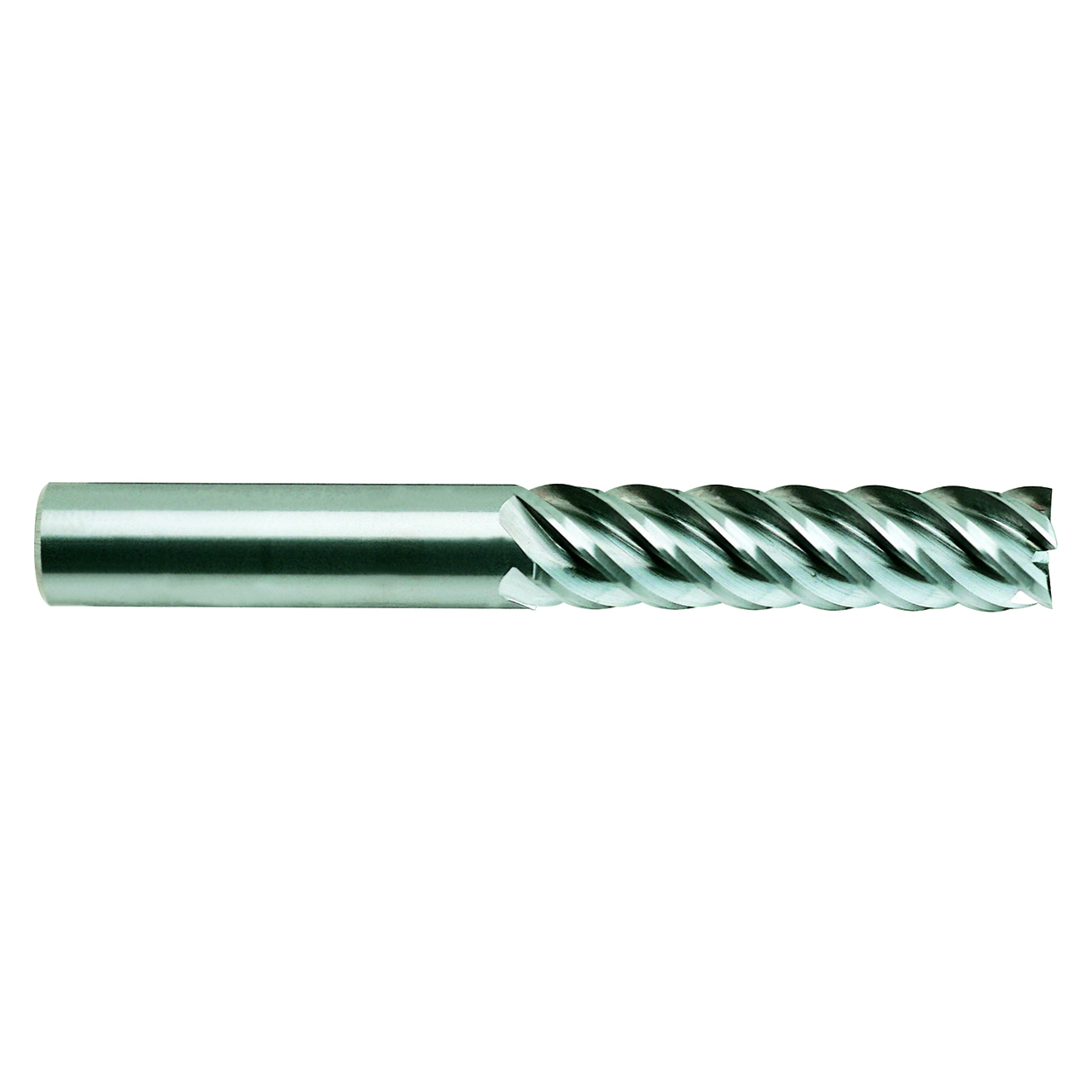

| Product Type | Square End Mill |
