Product Specifications

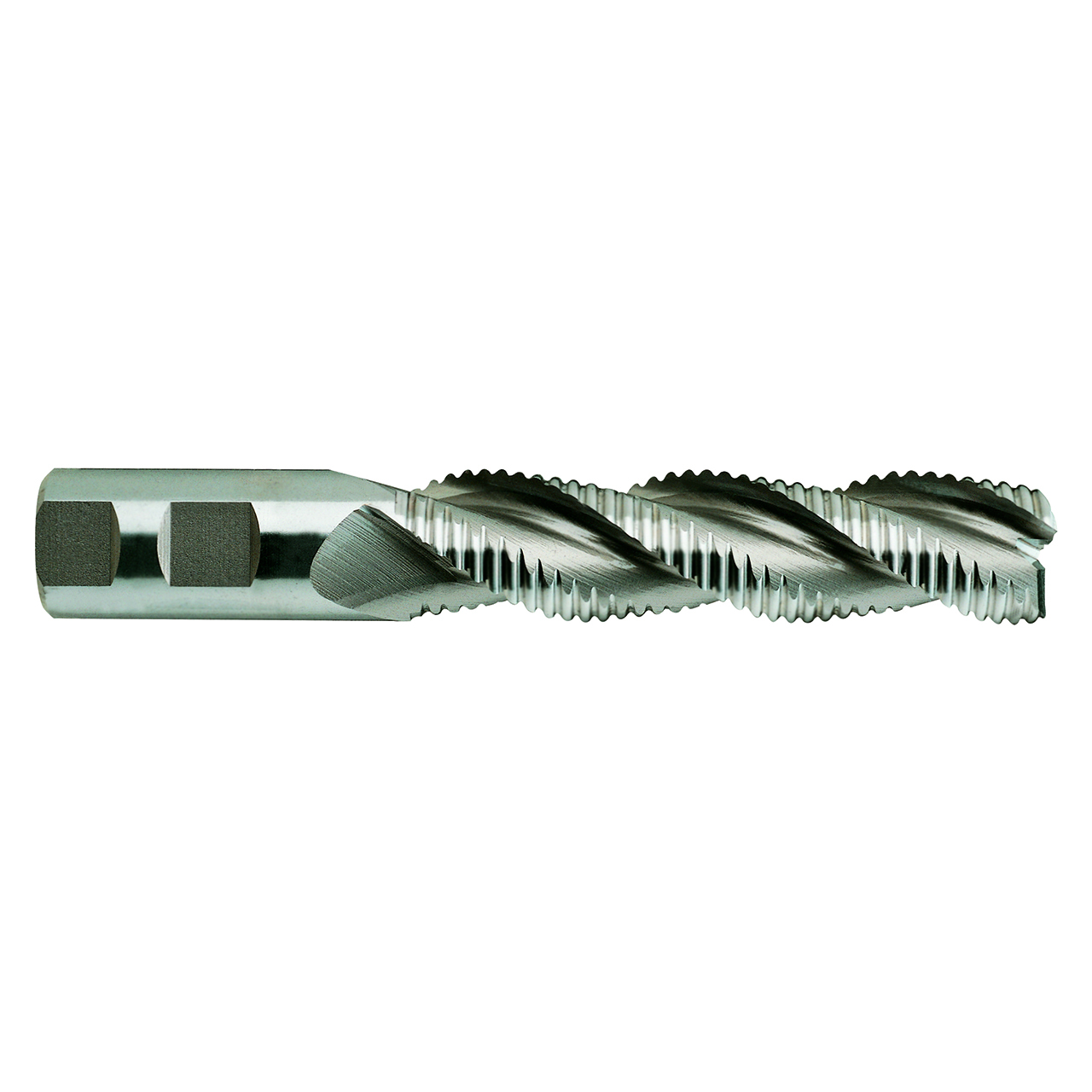

| EDP Number | 67359CN |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (Inch) | 3/4" |
| Diameter (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 3.0000" |
| Length of Cut (Inch) | 3" |
| Length of Cut (mm) | 76.20mm |
| Overall Length (Decimal Inch) | 5.2500" |
| Overall Length (Inch) | 5-1/4" |
| Overall Length (mm) | 133.35mm |
| Series | E2192 |
| Shank Style | Flat |
| Helix Angle | 37 Degree |
| Number of Flutes | 3 |
| Coating | TiN |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Type | Square End Mills |
| Application | P |
| Material | HSSCo8 |
