Product Specifications
| # Manufacturer Number | 93300 |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (Inch) | 1/2" |
| Diameter (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| LBS (Decimal Inch) | 2.2500" |
| LBS (Inch) | 2-1/4" |
| LBS (mm) | 57.15mm |
| Overall Length (Decimal Inch) | 4.2500" |
| Overall Length (Inch) | 4-1/4" |
| Overall Length (mm) | 107.95mm |
| Ball Nose Radius (Decimal Inch) | 0.2500" |
| Ball Nose Radius (Inch) | 1/4" |
| Ball Nose Radius (mm) | 6.35mm |
| Neck Diameter (Decimal Inch) | 0.4000" |
| Neck Diameter (Inch) | 2/5" |
| Neck Diameter (mm) | 10.16mm |
| Number of Flute | 4 |
| Helix Angle (Degree) | 30 Degree |
| Coating | ALTiN |
| Material | Carbide |
| Cut Type | Center Cut |
| Shank Style | Plain |
| Cutting Direction | Right |
| Series | EM093 |

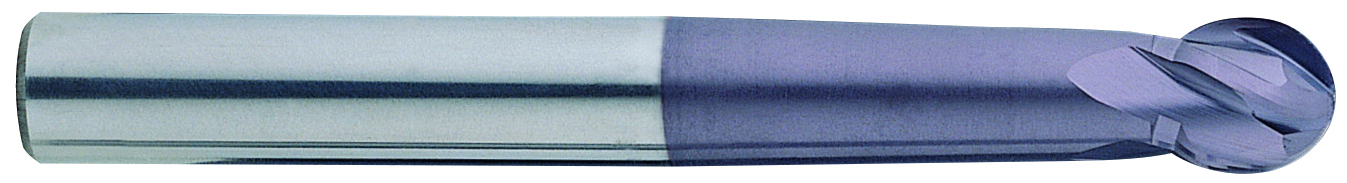

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.70mm
Number of Flutes:
4
Length of Cut (Inch):
17/32"
Length of Cut (Decimal Inch):
0.5313"
Length of Cut (mm):
13.49mm
Material:
Carbide
Shank Type:
Plain
Overall Length (Inch):
4-1/4"
Overall Length (Decimal Inch):
4.2500"
Overall Length (mm):
107.95mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Finish/Coating:
AlTiN
Cutting Direction:
Right
Helix Angle (Degree):
30 Degree
Center Cutting (yes/no):
Center Cut
Application:
P
