Product Specifications
| Manufacturer Part Number | 93508 |
| Cutting Diameter (Inch) | 1/36" |
| Cutting Diameter (Decimal Inch) | 0.028" |
| Cutting Diameter (mm) | 0.71mm |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.028" |
| Shank Diameter (mm) | 3.18mm |
| Length of Cut (Inch) | 3/50" |
| Length of Cut (Decimal Inch) | 0.060" |
| Length of Cut (mm) | 1.52mm |
| Overal Length (Inch) | 1-1/2" |
| Overal Length (Decimal Inch) | 1.500" |
| Overal Length (mm) | 38.10mm |
| Ball Nose Radius (Inch) | 1/71" |
| Ball Nose Radius (Decimal Inch) | 0.014" |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Cutting Direction | Right Hand |
| Material | Carbide |
| Coating | AlTiN |

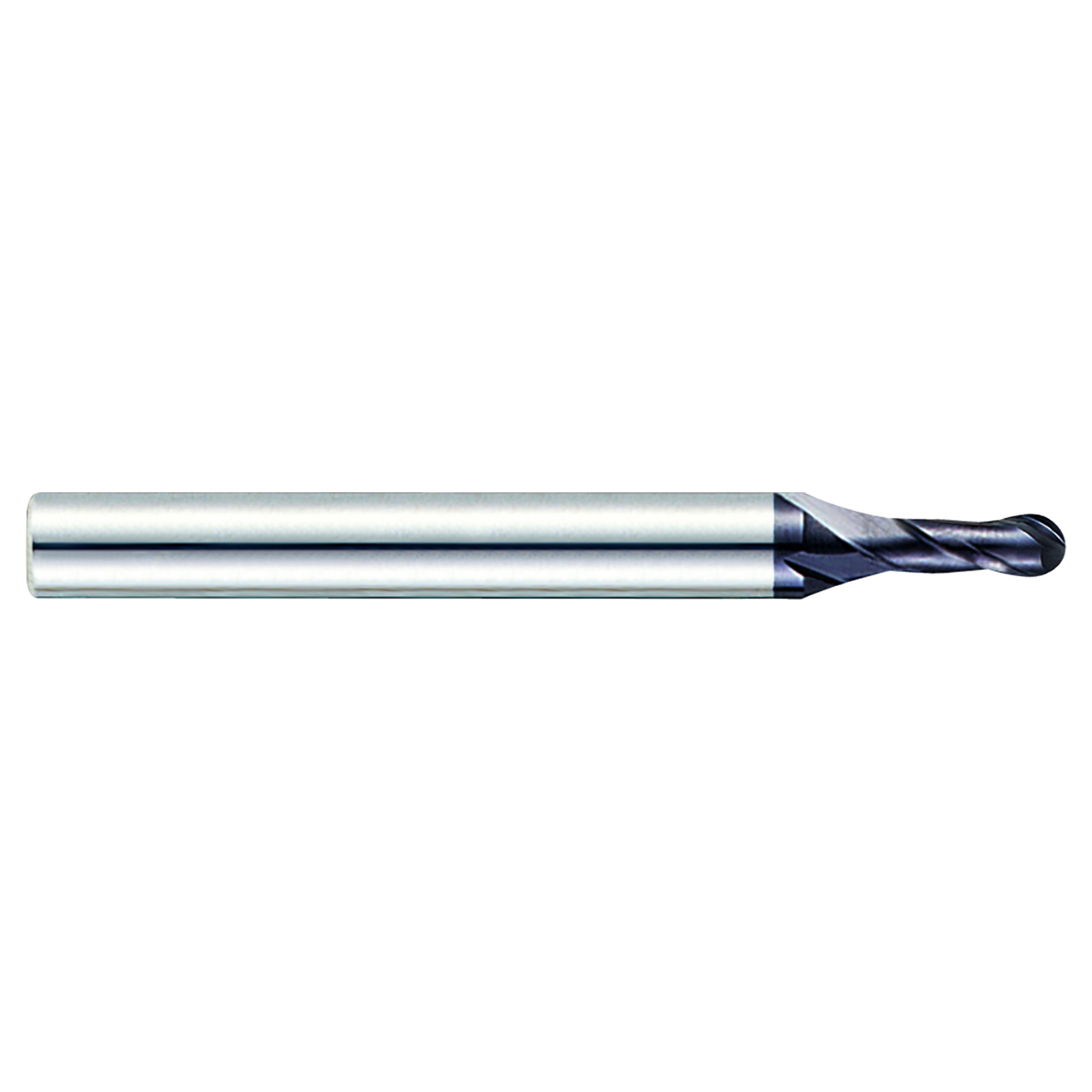

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
1/36"
Cutting Diameter (Decimal Inch):
0.0280"
Cutting Diameter (mm):
0.71mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.0280"
Shank Diameter (mm):
3.18mm
Length of Cut (Inch):
3/50"
Length of Cut (Decimal Inch):
0.0600"
Length of Cut (mm):
1.52mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Number of Flutes:
2
Shank Style:
Plain
Material:
Carbide
Cutting Direction:
Right Hand
Finish/Coating:
AlTiN
interval quantity:
1
