Product Specifications
| Manufacturer Part Number | AB028 |
| Bore Diameter (Inch) | 5/8" |
| Bore Diameter (Decimal Inch) | 0.6250" |
| Bore Diameter (mm) | 15.88mm |
| Gage-Length (Inch) | 3-19/35" |
| Gage Length (Decimal Inch) | 3.5430" |
| Gage Length (mm) | 89.99mm |
| Functional Length (Inch) | 2-31/41" |
| Functional Length (Decimal Inch) | 2.7560" |
| Functional Length (mm) | 70.00mm |
| Set Screw End Mill (Decimal Inch) | 0.8820" |
| Screw | UNF1/2-20 1/2L |
| Set of Screw | 1 |
| Taper Accuracy | AT3 |
| RPM | 25000 RPM |
| Coolant System | AD/B |

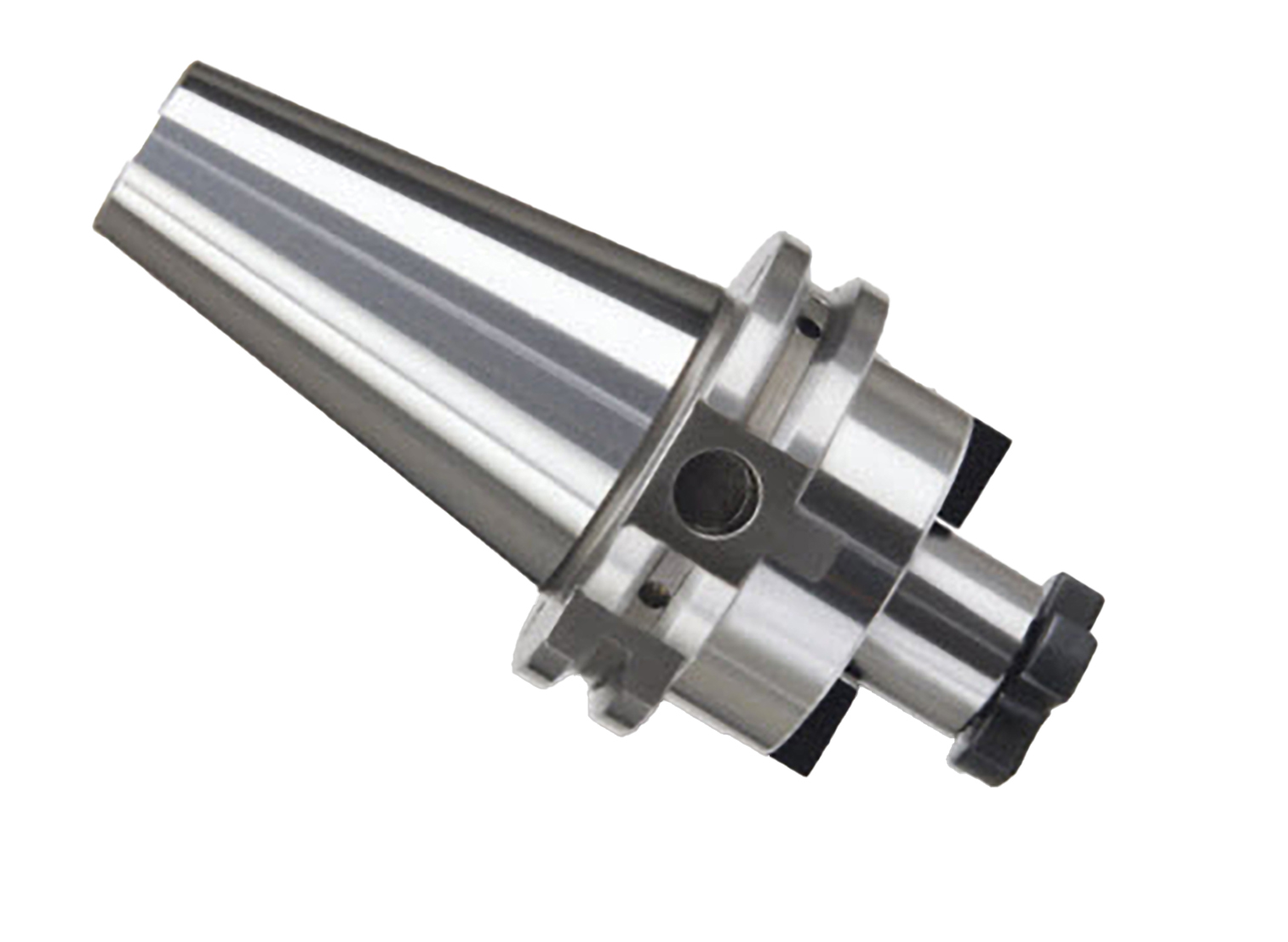

| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Bore Diameter (Decimal Inch):
0.6250"
Bore Diameter (mm):
15.88mm
Gage Length (Decimal Inch):
3.5430"
Gage Length (mm):
89.99mm
Speed (RPM):
25000 RPM
interval quantity:
1
