Product Specifications
| Manufacturer Part Number | AL002BX |
| Bore Diameter (Inch) | 1/4" |
| Bore Diameter (Decimal Inch) | 0.250" |
| Bore Diameter (mm) | 6.35mm |
| Body Diamter Work Piece (Inch) | 39/50" |
| Body Diamter Work Piece (Decimal Inch) | 0.780" |
| Body Diamter Work Piece (mm) | 19.81mm |
| Gage Length (Inch) | 2-1/2" |
| Gage Length (Decimal Inch) | 2.500" |
| Gage Length (mm) | 63.50mm |
| Number of Set Screw | 1 |
| Taper Accuracy | AT3 |
| Taper Number | CAT50 |

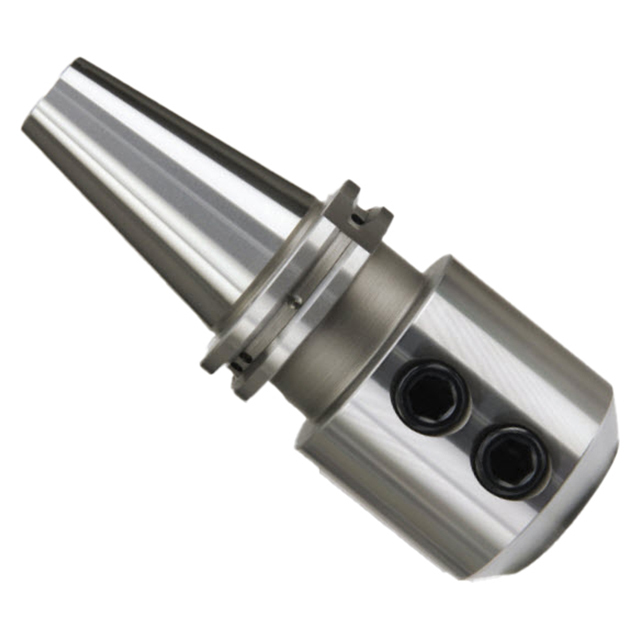

| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Bore Diameter (Inch):
1/4"
Bore Diameter (Decimal Inch):
0.2500"
Bore Diameter (mm):
6.35mm
Body Diameter Work Piece (Inch):
39/50"
Body Diameter Work Piece (Decimal Inch):
0.7800"
Body Diameter Work Piece (mm):
19.81mm
Gage Length (Inch):
2-1/2"
Gage Length (Decimal Inch):
2.5000"
Gage Length (mm):
63.50mm
Number of Set Screw:
1
Taper Accuracy:
AT3
RPM:
15000 RPM
Taper Number:
CAT50
interval quantity:
1
