Product Specifications
| Diameter (Decimal Inch) | BB282 |
| Diameter (Decimal Inch) | 0.1640" |
| Diameter (mm) | 4.17mm |
| Overall Length (Decimal Inch) | 2.1300" |
| Overall Length (mm) | 54.10mm |
| Thread Length (Decimal Inch) | 0.2760" |
| Thread Length (mm) | 7.00mm |
| Square Length (Decimal Inch) | 0.2500" |
| Square Length (mm) | 6.40mm |
| Shank Diameter (Decimal Inch) | 0.1680" |
| Shank Diameter (mm) | 4.30mm |
| Square Size (Decimal Inch) | 0.1310" |
| Square Size (mm) | 3.33mm |
| Neck Diameter (Decimal Inch) | 0.0610" |
| Neck Diameter (mm) | 3.05mm |
| Number of Flutes | 3 |
| Size & Pitch | #8-32 |
| Tap Type | SPFL |
| Size | #8 |
| Pitch | 32 TPI |
| Thread Series | UNC |
| Pitch Limit | H2 |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Finish | Steam Oxide |
| Material | Super HSS |
| Blank Standard | 302A |
| Helix Angle | 40 Degree |
| Length/Diameter | 2.5XD |
| Useable Length (Decimal Inch) | 0.7520" |
| Useable Length (mm) | 19.10mm |

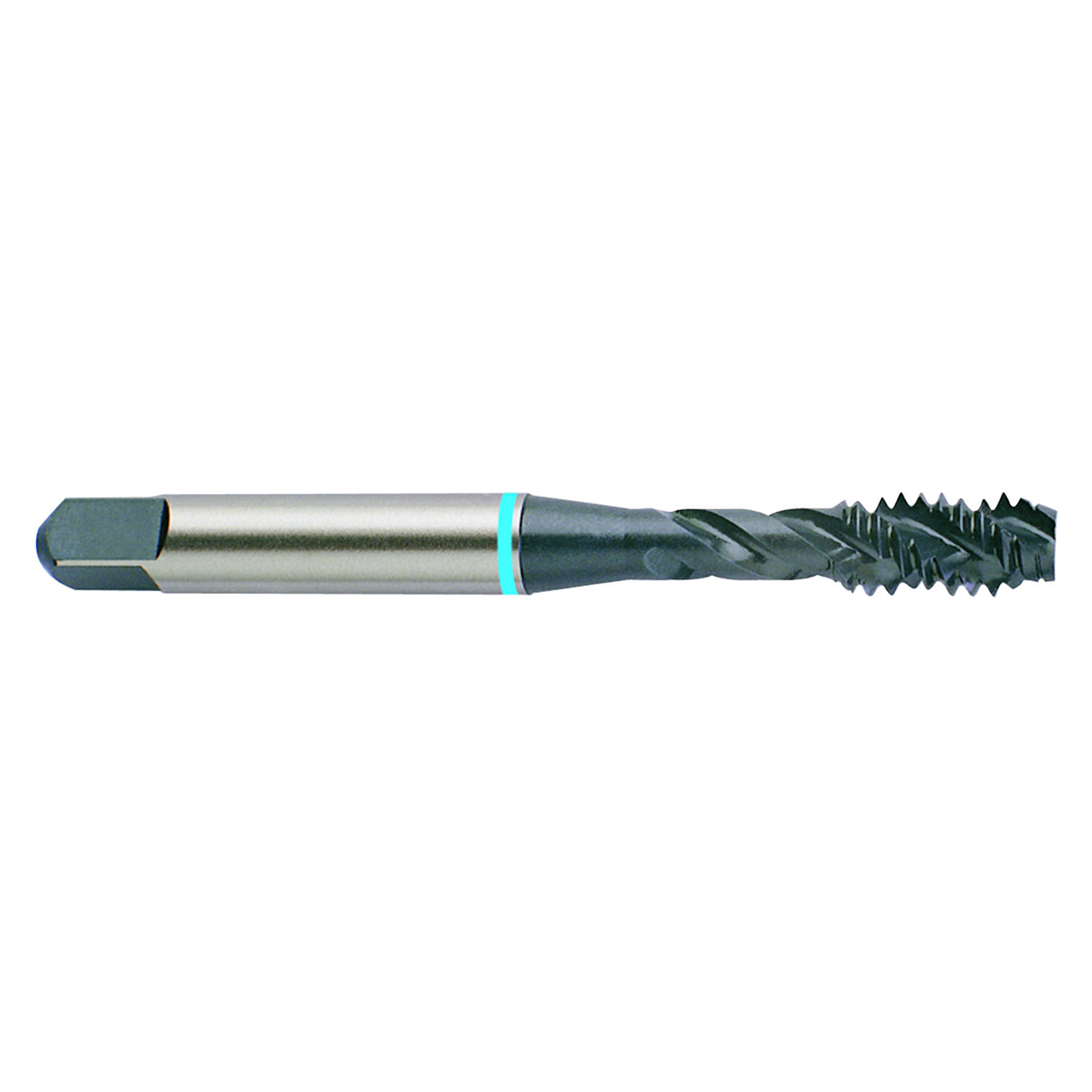

| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
0.1640"
Thread Size (mm):
4.17mm
Number of Flutes:
3
Chamfer:
Modified Bottoming
Material:
Super HSS
Finish/Coating:
Steam Oxide
Overall Length (Inch):
2.1300"
Overall Length (mm):
54.10mm
