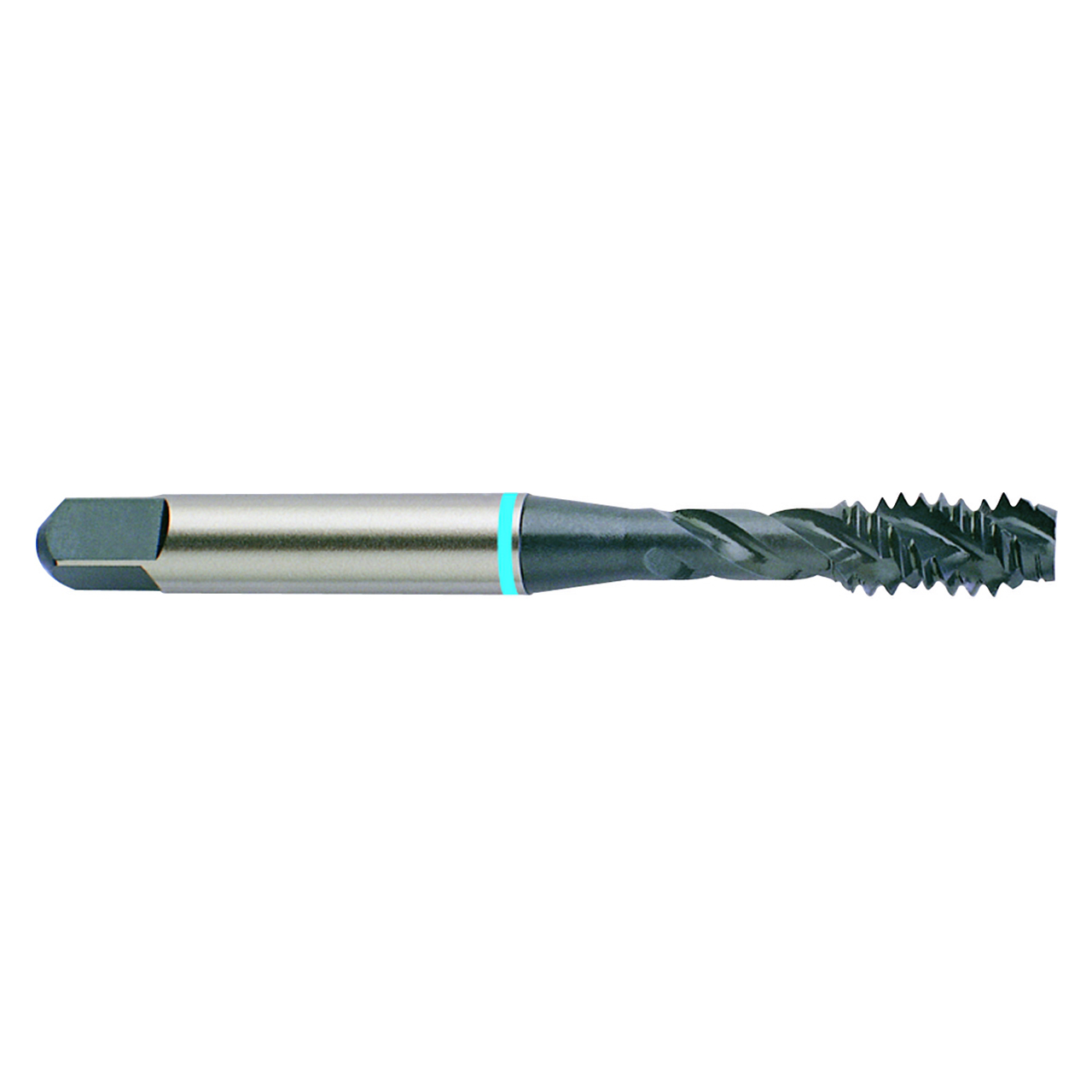

YG1 BI663 | 0.6250" Diameter x 0.4800" Shank x 3.8100" OAL 4 Flute HardSlick Coated Super HSS Spiral Flute Tap

$87.22
Brand:
YG1
Thread Size (Inch):
0.6250"
Thread Size (mm):
15.88mm
Number of Flutes:
4
Chamfer:
Modified Bottoming
Material:
Super HSS
Finish/Coating:
HardSlick
Overall Length (Inch):
3.8100"
Overall Length (mm):
96.80mm
SKU:
15007044
Weight:
0.18 LBS
Shipping:
Free Shipping

Product Specifications
Diameter (Decimal Inch)BI663
Diameter (Decimal Inch)0.6250"
Diameter (mm)15.88mm
Overall Length (Decimal Inch)3.8100"
Overall Length (mm)96.80mm
Thread Length (Decimal Inch)0.5120"
Thread Length (mm)13.00mm
Square Length (Decimal Inch)0.5600"
Square Length (mm)14.20mm
Shank Diameter (Decimal Inch)0.4800"
Shank Diameter (mm)12.20mm
Square Size (Decimal Inch)0.3600"
Square Size (mm)9.14mm
Neck Diameter (Decimal Inch)0.0610"
Neck Diameter (mm)11.91mm
Number of Flutes4
Size & Pitch5/8-18"
Tap TypeSPFL
Size5/8
Pitch18 TPI
Thread SeriesUNF
Pitch LimitH3
Chamfer TypeModified Bottoming
Chamfer Length2P-3P
FinishHardslick
MaterialSuper HSS
Blank Standard302A
Helix Angle40 Degree
Length/Diameter2.5XD
Useable Length (Decimal Inch)2.2050"
Useable Length (mm)56.01mm
Product TypeSpiral Flute Tap
