Product Specifications
| Diameter (Decimal Inch) | BO375 |
| Diameter (Decimal Inch) | 0.3150" |
| Diameter (mm) | 8.00mm |
| Overall Length (Decimal Inch) | 3.5430" |
| Overall Length (mm) | 90.00mm |
| Thread Length (Decimal Inch) | 0.4330" |
| Thread Length (mm) | 11.00mm |
| Square Length (Decimal Inch) | 0.3800" |
| Square Length (mm) | 9.70mm |
| Shank Diameter (Decimal Inch) | 0.3180" |
| Shank Diameter (mm) | 8.10mm |
| Square Size (Decimal Inch) | 0.2380" |
| Square Size (mm) | 6.05mm |
| Neck Diameter (Decimal Inch) | 0.0610" |
| Neck Diameter (mm) | 6.25mm |
| Number of Flutes | 3 |
| Size & Pitch | M8x1 |
| Tap Type | SPFL |
| Size | M8 |
| Pitch | 1 TPI |
| Thread Series | MF |
| Pitch Limit | D5 |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Finish | Hardslick |
| Material | Super HSS |
| Blank Standard | DIN/ANSI |
| Helix Angle | 40 Degree |
| Length/Diameter | 2.5XD |
| Useable Length (Decimal Inch) | 1.1260" |
| Useable Length (mm) | 28.60mm |

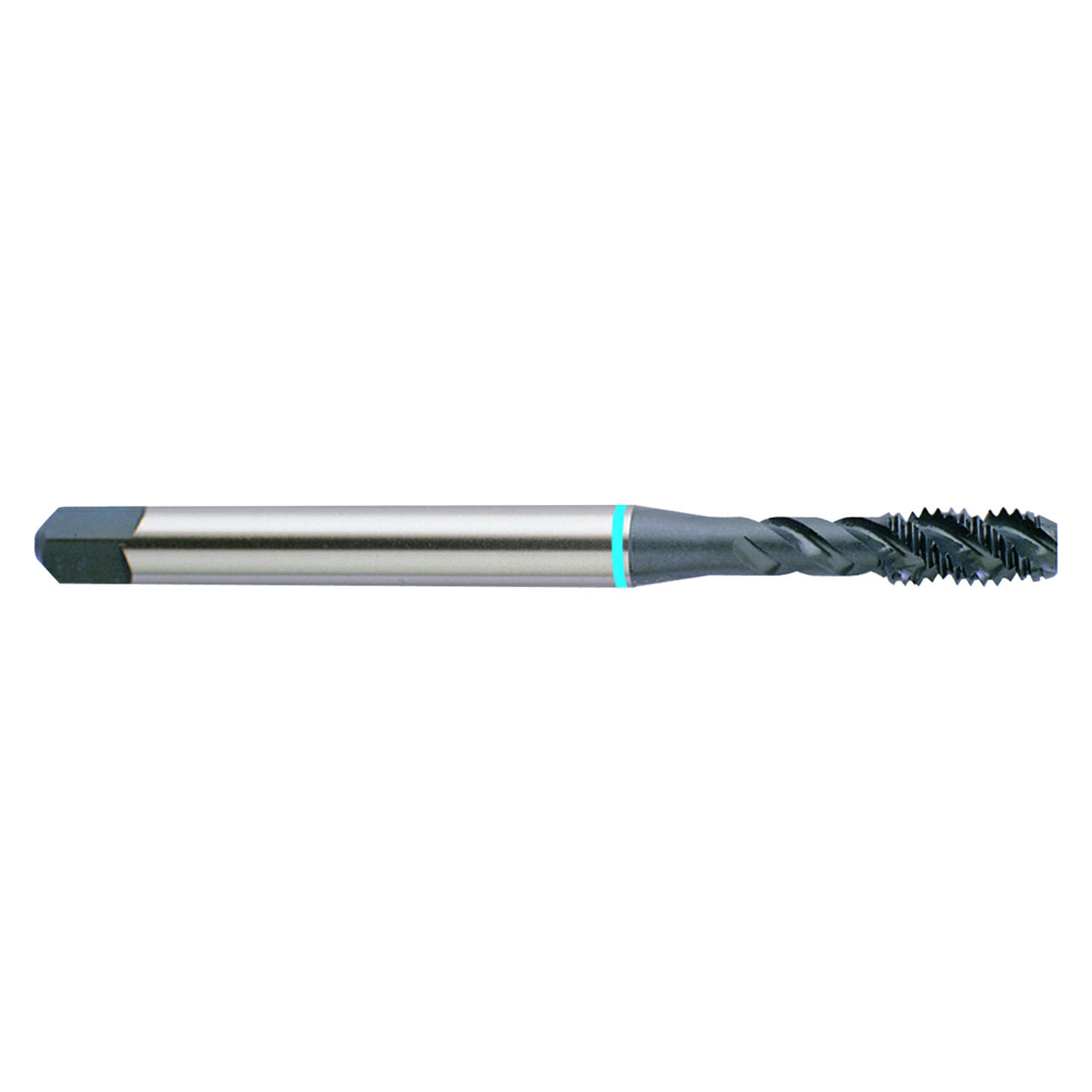

| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
0.3150"
Thread Size (mm):
8.00mm
Number of Flutes:
3
Chamfer:
Modified Bottoming
Material:
Super HSS
Finish/Coating:
HardSlick
Overall Length (Inch):
3.5430"
Overall Length (mm):
90.00mm
