Product Specifications
| # Manufacturer Number | BX285 |
| Diameter (Decimal Inch) | 0.1969" |
| Diameter (mm) | 5.00mm |
| Thread Size | M5 |
| Pitch | 0.8 TPI |
| Shank Diameter (Decimal Inch) | 0.1940" |
| Shank Diameter (mm) | 4.93mm |
| Overall Length (Decimal Inch) | 2.3800" |
| Overall Length (mm) | 60.45mm |
| Thread Length (Decimal Inch) | 0.3540" |
| Thread Length (mm) | 8.99mm |
| Square Length (Decimal Inch) | 0.2500" |
| Square Length (mm) | 6.35mm |
| Square Size (Decimal Inch) | 0.1520" |
| Square Size (mm) | 3.86mm |
| Neck Diameter (Decimal Inch) | 0.1520" |
| Neck Diameter (mm) | 3.86mm |
| Useable Length (Decimal Inch) | 0.9330" |
| Useable Length (mm) | 23.70mm |
| Drill Size (Decimal Inch) | 0.1682" |
| Drill Size (mm) | 4.27mm |
| Number of Flutes | 2 |
| Pitch Limit | D5 |
| Helix Angle (Degree) | 50 Degree |
| Coolant Through | No |
| Shank Type | Square |
| Finish / Coating | Hardslick |
| Material | HSSE-V3 |
| Chamfer Length | 2P-3P |
| Chamfer Type | Modified Bottoming |

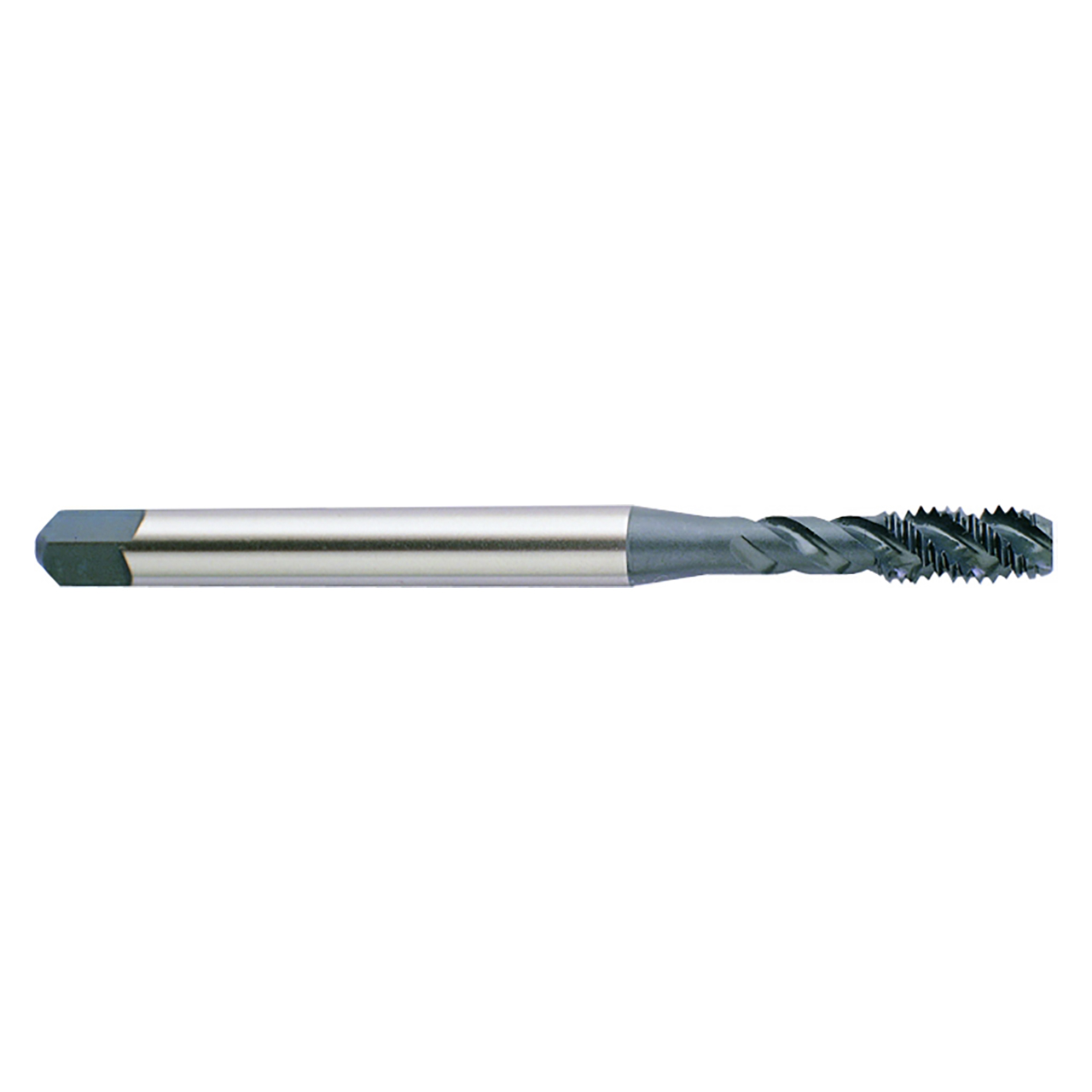

| Product Type | Spiral Flute Thread Tap |
