Product Specifications
| EDP Number | C4423 |
| Size & Pitch | 1/4-28 |
| Diameter (Decimal Inch) | 0.2500" |
| Diameter (mm) | 6.35mm |
| Overall Length (Decimal Inch) | 2.5000" |
| Length/Diameter | 2.5 x D |
| Coolant Through | No |
| Overall Length (mm) | 63.50mm |
| Thread Length (Decimal Inch) | 1.0000" |
| Thread Length (mm) | 25.40mm |
| Square Length (Decimal Inch) | 0.3100" |
| Square Length (mm) | 7.87mm |
| Shank Diameter (Decimal Inch) | 0.2550" |
| Shank Diameter (mm) | 6.48mm |
| Square Size (Decimal Inch) | 0.1910" |
| Square Size (mm) | 4.85mm |
| Drill Size (Decimal Inch) | 0.2175" |
| Drill Size (mm) | 5.53mm |
| Useable Length (mm) | 25.40mm |
| Useable Length (Decimal Inch) | 1.0000" |
| Connection (Decimal Inch) | 0.255 x 0.191" |
| Connection (mm) | 6.48 x 4.85mm |
| Series | C4 |
| Chamfer Type | Bottoming |
| Chamfer Length | 1.5P-2P |
| Thread Series | UNF |
| Pitch Limit | H3 |
| Blank Standard | 302 |
| Helix Angle (Degree) | 45 Degree |
| Finish | TiN |
| Shank Type | Square |
| Trade Name | YG Tap GP |
| Tap Type | SPFL |
| Number of Flute | 3 |
| Material | HSSE-V3 |

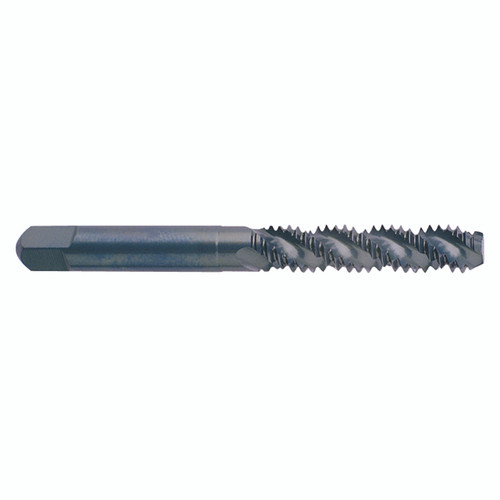

| Product Type | Spiral Flute Bottom Tap |
