Product Specifications
| # Manufacturer Number | D1634022 |
| Diameter (Decimal Inch) | 0.3438" |
| Diameter (Inch) | 11/32" |
| Diameter (mm) | 8.73mm |
| Shank Diameter (Decimal Inch) | 0.3438" |
| Shank Diameter (Inch) | 11/32" |
| Shank Diameter (mm) | 8.73mm |
| Overall Length (Decimal Inch) | 12.0000" |
| Overall Length (Inch) | 12" |
| Overall Length (mm) | 304.80mm |
| Flute Length (Decimal Inch) | 3.4375" |
| Flute Length (Inch) | 3-7/16" |
| Flute Length (mm) | 87.31mm |
| Point Length (Decimal Inch) | 0.0712" |
| Point Length (mm) | 1.81mm |
| Point Angle (Degree) | 135 Degree |
| 30 Degree | 30 Degree |
| Number of Flutes | 2 |
| Coating | Oxide |
| Material | HSS |
| Application | P |
| Cutting Direction | Right |

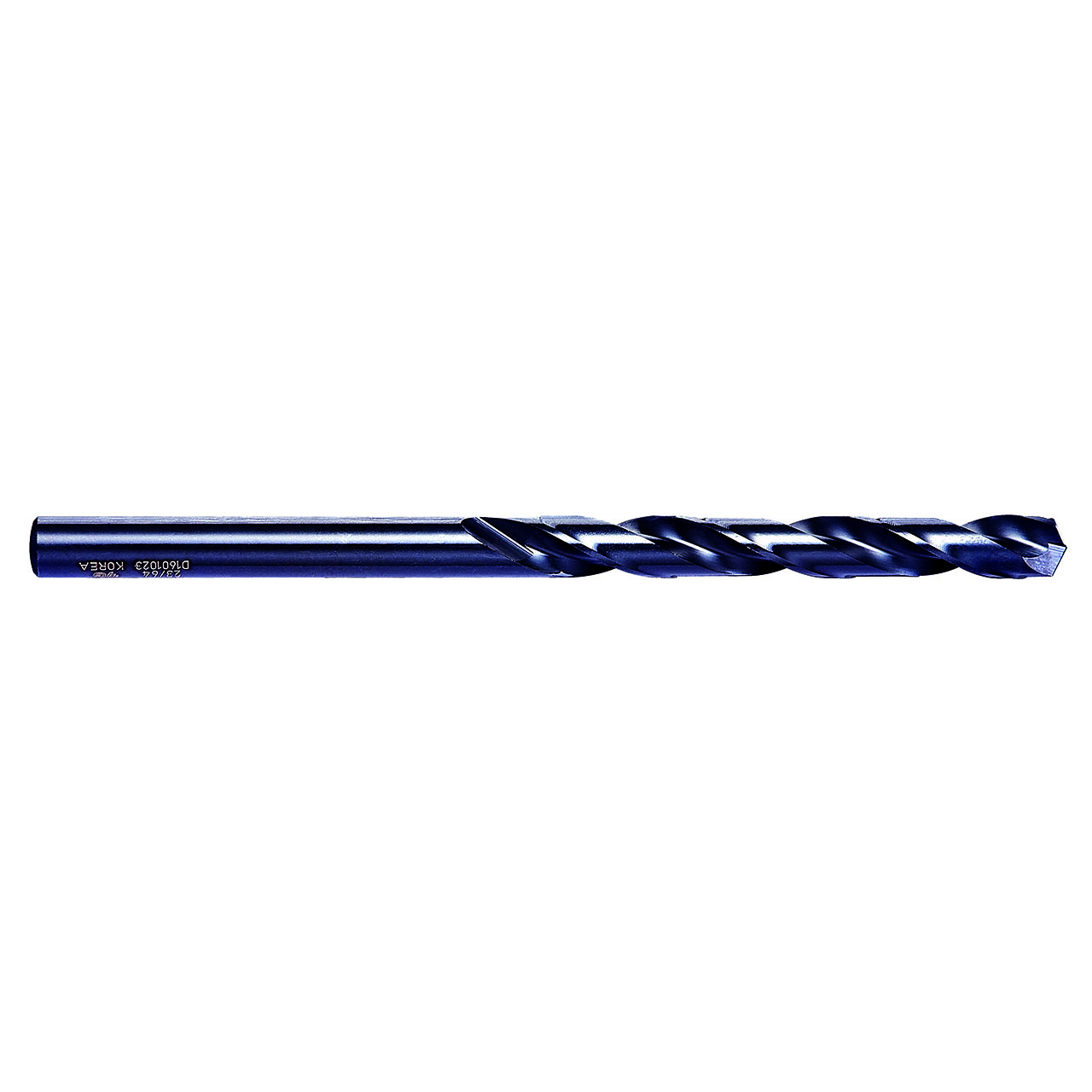

| Product Type | Aircraft Extension Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
11/32"
Drill Bit Size (Decimal Inch):
0.3438"
Drill Bit Size (mm):
8.73mm
Drill Point Angle:
135 Degree
Flute Length (Inch):
3-7/16"
Flute Length (Decimal Inch):
3.4375"
Flute Length (mm):
87.31mm
Material:
HSS
Finish/Coating:
Oxide
interval quantity:
1
