Product Specifications
| EDP Number | D5322024 |
| Diameter (Decimal Inch) | 0.3750" |
| Diameter (Inch) | 3/8" |
| Diameter (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Flute Length (Decimal Inch) | 1.0000" |
| Flute Length (Inch) | 1" |
| Flute Length (mm) | 25.40mm |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (Inch) | 3" |
| Overall Length (mm) | 76.20mm |
| Point Length (Decimal Inch) | 0.1083" |
| Point Length (mm) | 2.75mm |
| Number of Flutes | 2 |
| Point Angle (Degree) | 120 Degree |
| Series | D5322 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Material | Carbide |
| Hole Tolerance | h6 |
| Application | P,K |
| Cutting Direction | Right Hand |

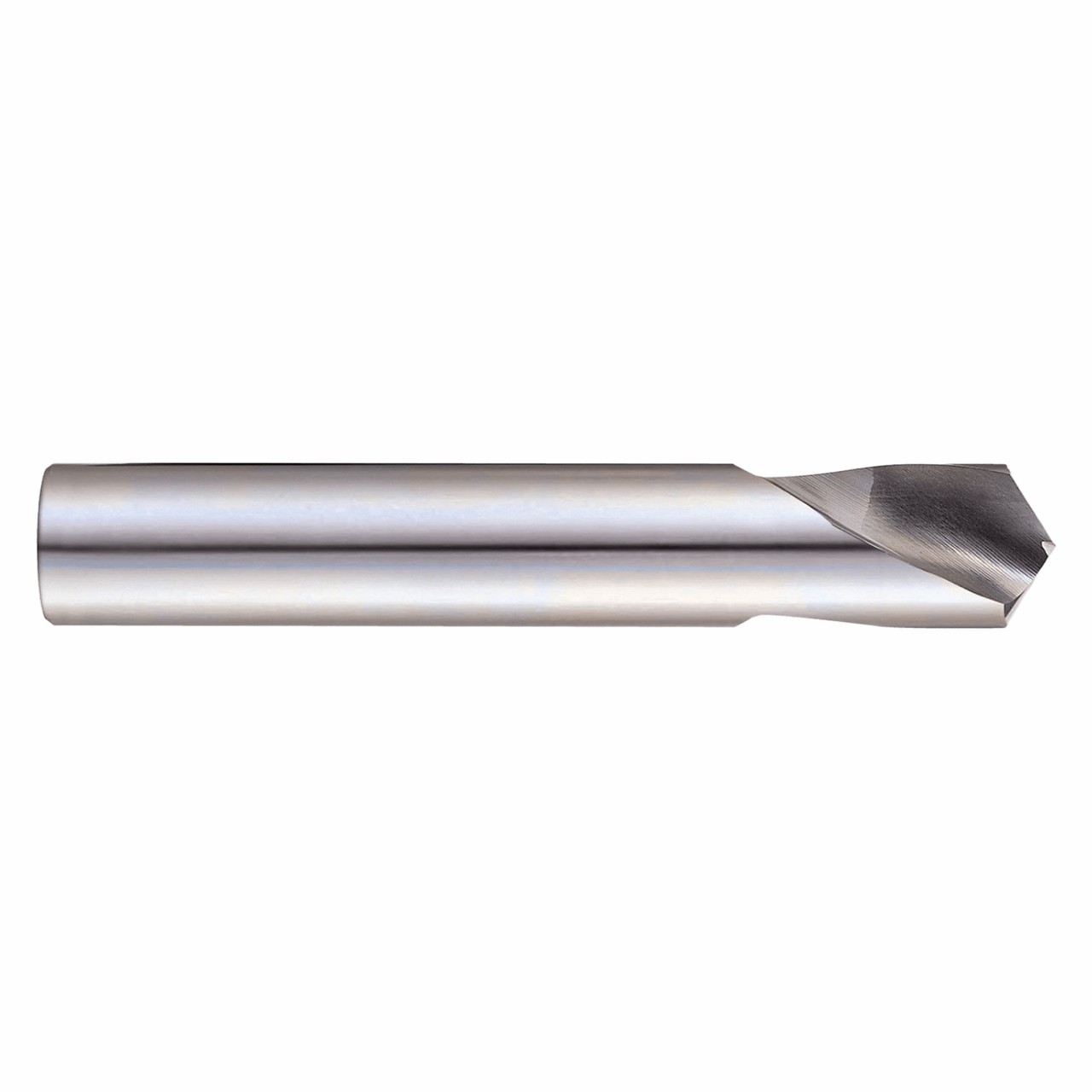

| Product Type | NC Spotting Drill |
