Product Specifications
| EDP Number | D5322048 |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (Inch) | 3/4" |
| Diameter (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Flute Length (Decimal Inch) | 1.7500" |
| Flute Length (Inch) | 1-3/4" |
| Flute Length (mm) | 44.45mm |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (Inch) | 4" |
| Overall Length (mm) | 101.60mm |
| Point Length (Decimal Inch) | 0.2165" |
| Point Length (mm) | 5.50mm |
| Number of Flutes | 2 |
| Point Angle (Degree) | 120 Degree |
| Series | D5322 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Material | Carbide |
| Hole Tolerance | h6 |
| Application | P,K |
| Cutting Direction | Right Hand |

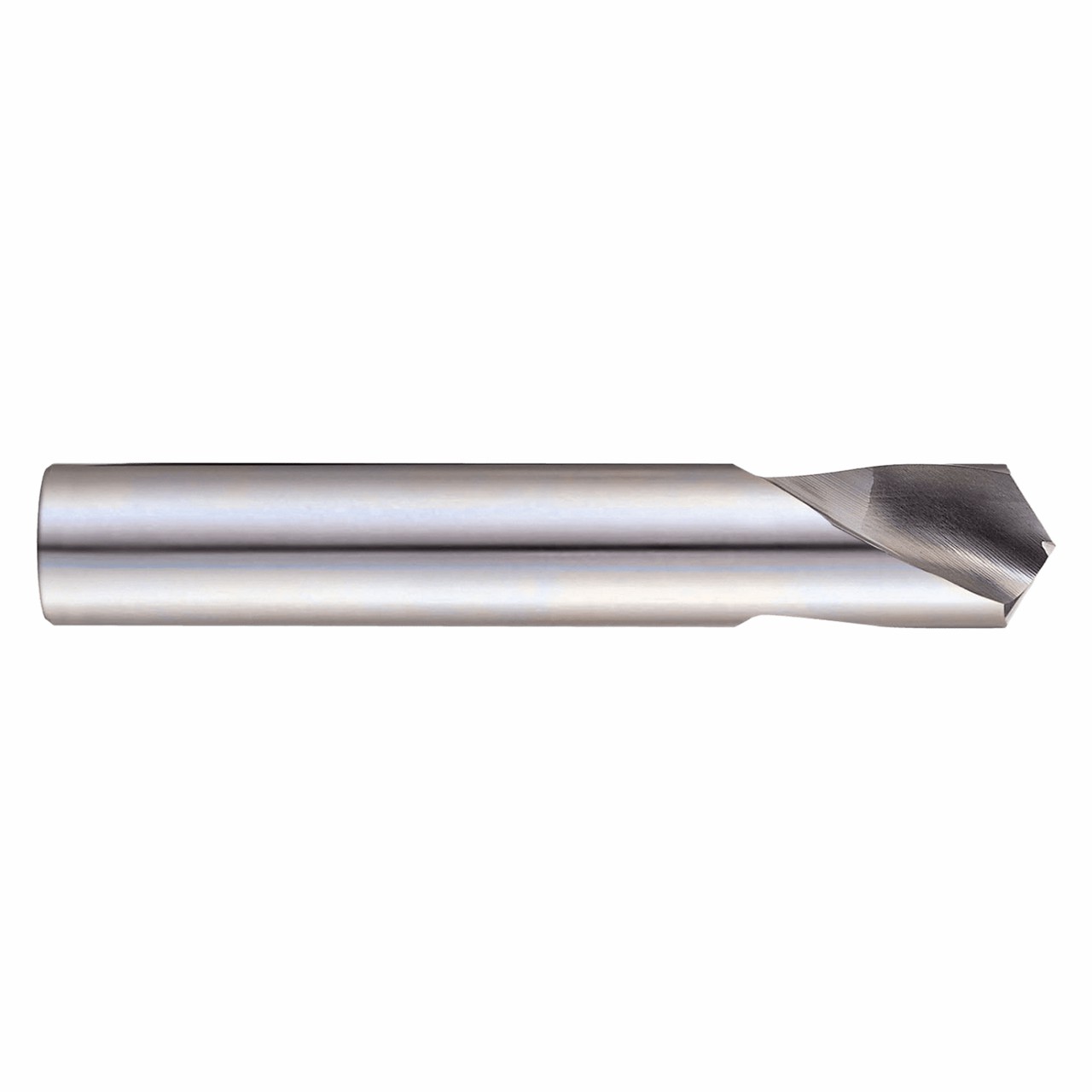

| Product Type | NC Spotting Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Body Diameter (Inch):
3/4"
Body Diameter (Decimal Inch):
0.7500"
Body Diameter (mm):
19.05mm
Drill Point Angle:
120 Degree
Material:
Carbide
interval quantity:
1
