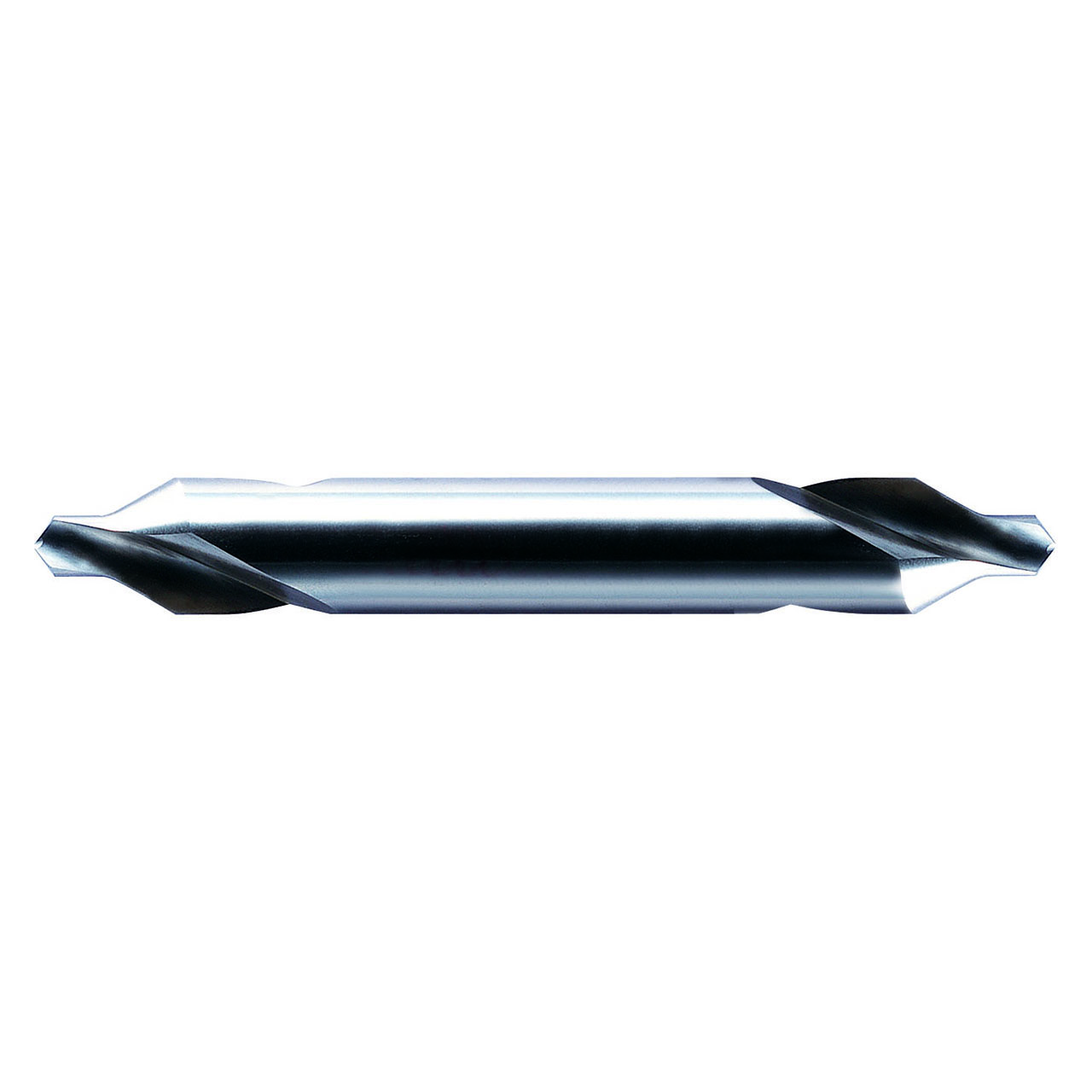

YG1 D5332020 | #4 Size x 0.1250" Diameter x 0.3125" Shank x 2.1250" OAL 90 Degree Point Angle 2 Flute Bright Coated Solid Carbide Combination Drill & Countersink

$51.63 $37.17
(You save $14.46)
Brand:
YG1
Drill Point Diameter (Inch):
1/8"
Drill Point Diameter (Decimal Inch):
0.1250"
Drill Point Diameter (mm):
3.18mm
Body Diameter (Inch):
5/16"
Body Diameter (Decimal Inch):
0.3125"
Body Diameter (mm):
7.94mm
Trade Size:
#4
Included Angle:
90 Degree
Material:
Solid Carbide
Finish/Coating:
Bright
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
10252885
UPC:
Weight:
0.06 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
EDP NumberD5332020
Center Drill Size#4
Pilot Length (Decimal Inch)0.1250"
Pilot Length (Inch)1/8"
Pilot Length (mm)3.18mm
Pilot Diameter (Decimal Inch)0.1250"
Pilot Diameter (Inch)1/8"
Pilot Diameter (mm)3.18mm
Shank Diameter (Decimal Inch)0.3125"
Shank Diameter (Inch)5/16"
Shank Diameter (mm)7.94mm
Overall Length (Decimal Inch)2.1250"
Overall Length (Inch)2-1/8"
Overall Length (mm)53.98mm
Point Length (Decimal Inch)0.0361"
Point Length (mm)0.92mm
Point Angle120 Degree
Center Angle (Degree)90 Degree
Number of Flutes2
SeriesD5332
Shank Toleranceh8
Coolant ThroughNo
CoatingBright
MaterialSolid Carbide
Hole Tolerancek12
ApplicationP,K
Cutting DirectionRight Hand
Product TypeCombination Drill & Countersink
