Product Specifications

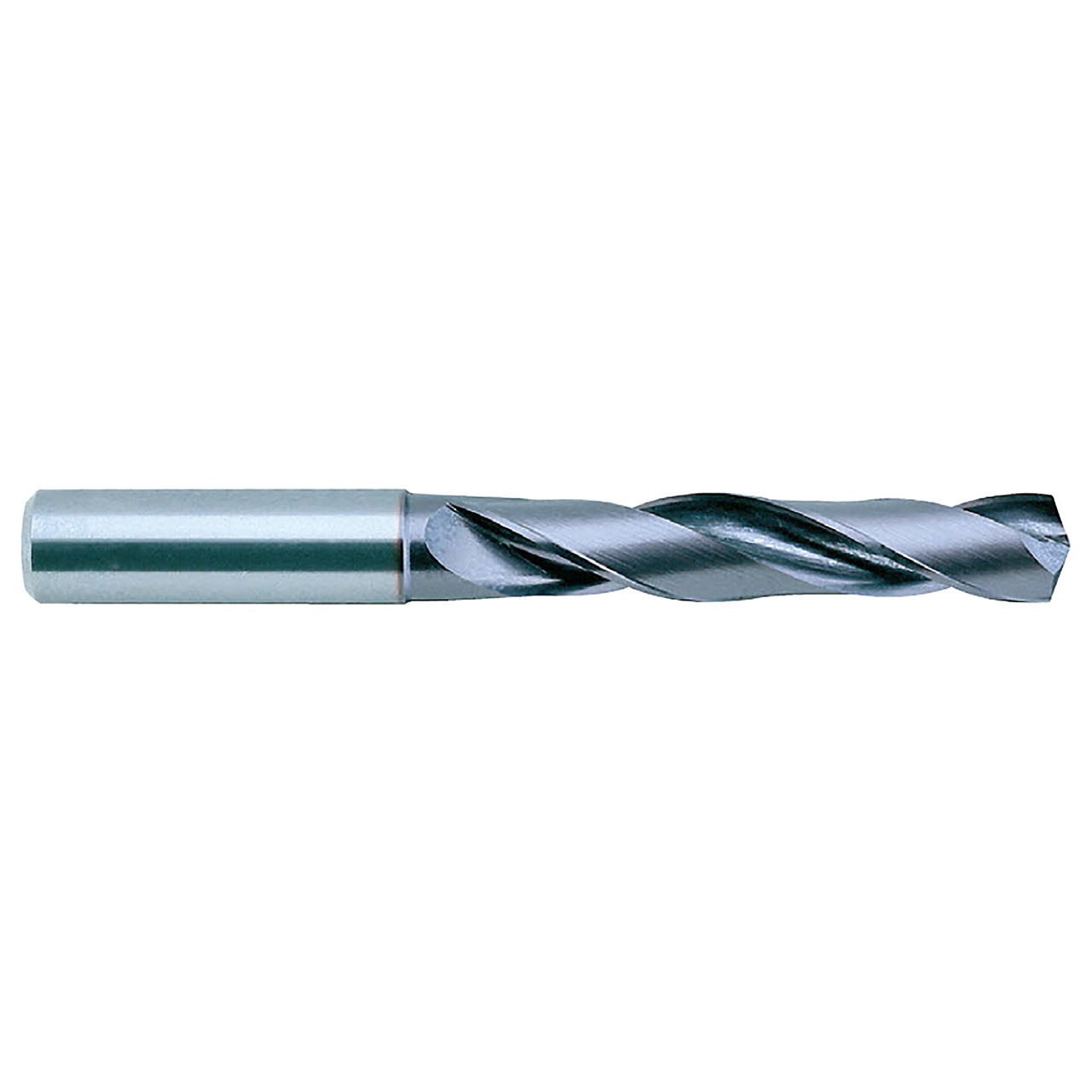

| Manufacturer Part Number | DB301027F |
| Diameter (Inch) | 27/64" |
| Diameter (Decimal Inch) | 0.4219" |
| Diameter (mm) | 10.72mm |
| Shank Diameter (Inch) | 43/91" |
| Shank Diameter (Decimal Inch) | 0.4724" |
| Shank Diameter (mm) | 12.00mm |
| Flute Length (Inch) | 2-1/6" |
| Flute Length (Decimal Inch) | 2.1654" |
| Flute Length (mm) | 55.00mm |
| Overall Length (Inch) | 4-1/64" |
| Overall Length (Decimal Inch) | 4.0157" |
| Overall Length (mm) | 102.00mm |
| Point Angle | 140 Degree |
| Helix Angle | 0 Degree |
| Length/Diameter | 3xD |
| Number of Flutes | 2 |
| Series | DH423 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Blank Standard | DIN 6539 |
| Coating | TiAIN |
| Material | Carbide |
| Hole Tolerance | h7 |
| Type | General Purpose 5XD |
| Application | P,K |
| Cutting Direction | Right Hand |
