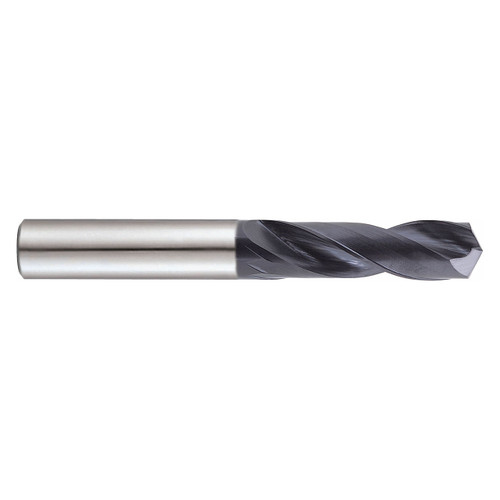

Product Specifications
| Manufacturer Part Number | DB301105 |
| Diameter (Inch) | 31/75" |
| Diameter (Decimal Inch) | 0.4134" |
| Diameter (mm) | 10.50mm |
| Shank Diameter (Inch) | 31/75" |
| Shank Diameter (Decimal Inch) | 0.4134" |
| Shank Diameter (mm) | 10.50mm |
| Flute Length (Inch) | 1-9/13" |
| Flute Length (Decimal Inch) | 1.6929" |
| Flute Length (mm) | 43.00mm |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (Decimal Inch) | 3.5039" |
| Overall Length (mm) | 89.00mm |
| Point Angle | 140 Degree |
| Helix Angle | 0 Degree |
| Length/Diameter | 3XD |
| Number of Flutes | 2 |
| Series | DB301 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Blank Standard | DIN 6539 |
| Coating | TiAIN |
| Material | Carbide |
| Hole Tolerance | h7 |
| Type | General Purpose 3XD |
| Application | P,K |
| Cutting Direction | Right Hand |
