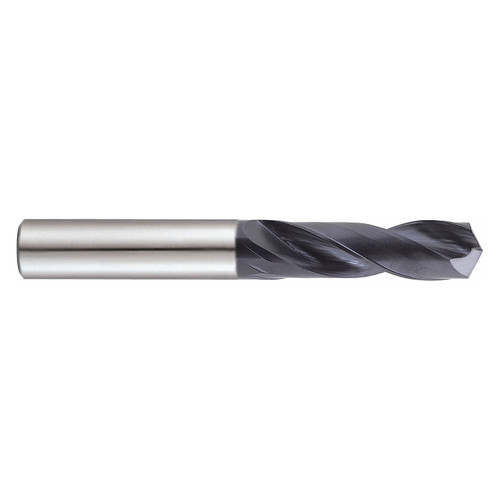

YG1 DB301115 | 0.4528" Diameter x 0.4528" Shank x 3.7402" OAL 2 Flute TiAIN Coated Carbide Screw Machine Length Drill Bit

$112.60 $81.07
(You save $31.53)
Brand:
YG1
Drill Bit Size (Inch):
24/53"
Drill Bit Size (Decimal Inch):
0.4528"
Drill Bit Size (mm):
11.50mm
Flute Length (Inch):
1-17/20"
Flute Length (Decimal Inch):
1.8504"
Flute Length (mm):
47.00mm
Material:
Carbide
Finish/Coating:
TiAIN
Cutting Direction:
Right Hand
Coolant Through:
No
interval quantity:
1
SKU:
10252960
UPC:
Weight:
0.27 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
YG1 DB301115 | 0.4528" Diameter x 0.4528" Shank x 3.7402" OAL 2 Flute TiAIN Coated Carbide Screw Machine Length Drill Bit

Product Specifications
Manufacturer Part NumberDB301115
Diameter (Inch)24/53"
Diameter (Decimal Inch)0.4528"
Diameter (mm)11.50mm
Shank Diameter (Inch)24/53"
Shank Diameter (Decimal Inch)0.4528"
Shank Diameter (mm)11.50mm
Flute Length (Inch)1-17/20"
Flute Length (Decimal Inch)1.8504"
Flute Length (mm)47.00mm
Overall Length (Inch)3-57/77"
Overall Length (Decimal Inch)3.7402"
Overall Length (mm)95.00mm
Point Angle140 Degree
Helix Angle0 Degree
Length/Diameter3XD
Number of Flutes2
SeriesDB301
Shank Toleranceh6
Coolant ThroughNo
Blank StandardDIN 6539
CoatingTiAIN
MaterialCarbide
Hole Toleranceh7
TypeGeneral Purpose 3XD
ApplicationP,K
Cutting DirectionRight Hand
