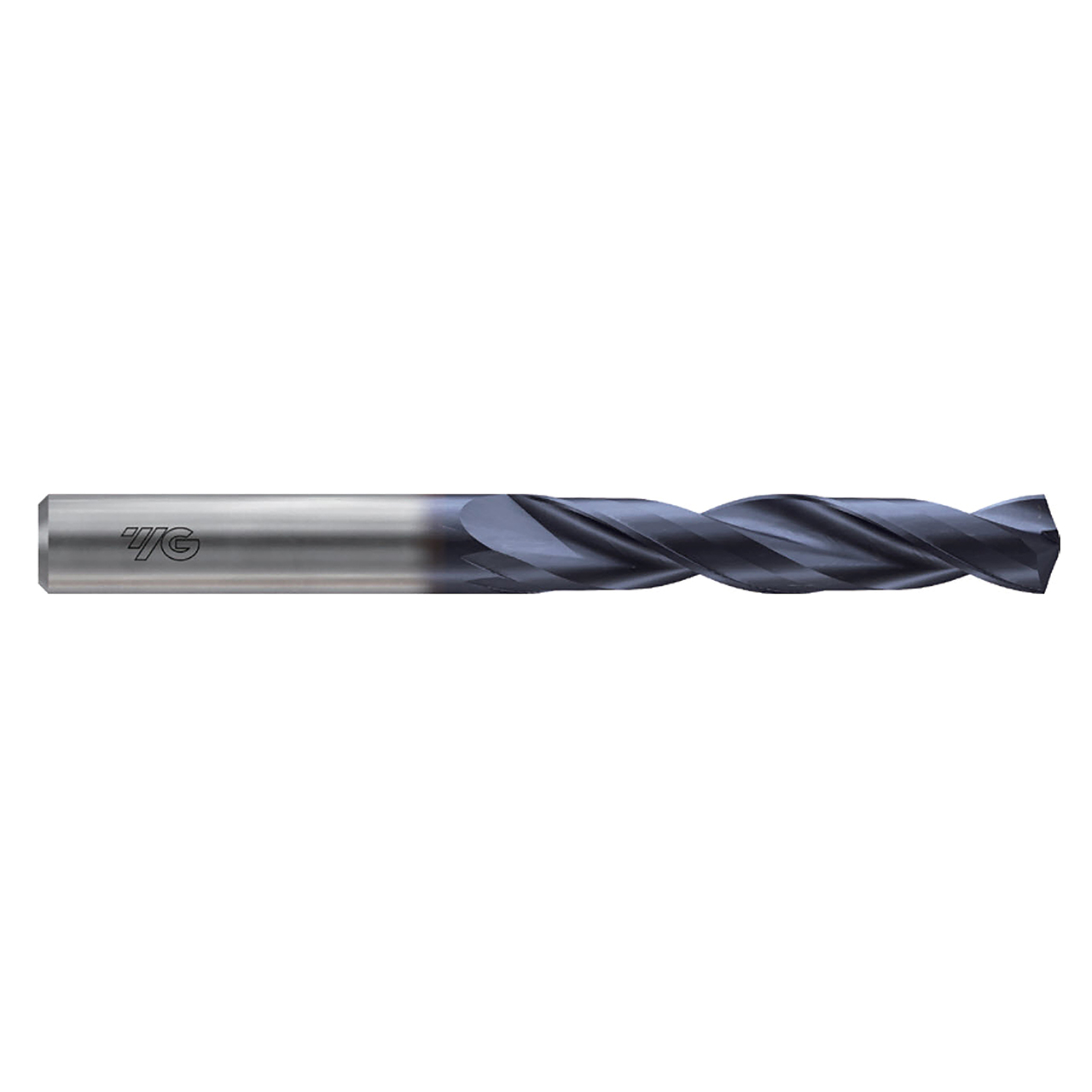

YG1 DB501140 | 0.5512" Diameter x 0.5512" Shank x 4.8819" OAL 2 Flute TiAIN Coated Carbide Screw Machine Length Drill Bit

$163.72 $117.88
(You save $45.84)
Brand:
YG1
Drill Bit Size (Inch):
43/78"
Drill Bit Size (Decimal Inch):
0.5512"
Drill Bit Size (mm):
14.00mm
Flute Length (Inch):
3-3/95"
Flute Length (Decimal Inch):
3.0315"
Flute Length (mm):
77.00mm
Material:
Carbide
Finish/Coating:
TiAIN
Cutting Direction:
Right Hand
Coolant Through:
No
interval quantity:
1
SKU:
10253088
UPC:
Weight:
0.48 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
YG1 DB501140 | 0.5512" Diameter x 0.5512" Shank x 4.8819" OAL 2 Flute TiAIN Coated Carbide Screw Machine Length Drill Bit

Product Specifications
Manufacturer Part NumberDB501140
Diameter (Inch)43/78"
Diameter (Decimal Inch)0.5512"
Diameter (mm)14.00mm
Shank Diameter (Inch)43/78"
Shank Diameter (Decimal Inch)0.5512"
Shank Diameter (mm)14.00mm
Flute Length (Inch)3-3/95"
Flute Length (Decimal Inch)3.0315"
Flute Length (mm)77.00mm
Overall Length (Inch)4-15/17"
Overall Length (Decimal Inch)4.8819"
Overall Length (mm)124.00mm
Point Angle140 Degree
Helix Angle0 Degree
Length/Diameter5XD
Number of Flutes2
SeriesDB501
Shank Toleranceh6
Coolant ThroughNo
Blank StandardDIN6537
CoatingTiAIN
MaterialCarbide
Hole Tolerancem7
TypeGeneral Purpose 5XD
ApplicationP,K
Cutting DirectionRight Hand
