Product Specifications
| Diameter (Decimal Inch) | DH404135 |
| Diameter (Decimal Inch) | 0.5300" |
| Diameter (Inch) | 17/32" |
| Diameter (mm) | 13.50mm |
| Shank Diameter (Decimal Inch) | 0.5315" |
| Shank Diameter (Inch) | 17/32" |
| Shank Diameter (mm) | 13.50mm |
| Flute Length (Decimal Inch) | 2.1260" |
| Flute Length (Inch) | 2-1/8" |
| Flute Length (mm) | 54.00mm |
| Overall Length (Decimal Inch) | 4.2126" |
| Overall Length (Inch) | 4-10/47" |
| Overall Length (mm) | 107.00mm |
| Point Length (Decimal Inch) | 0.0967" |
| Point Length (mm) | 2.46mm |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Length/Diameter | 3 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Hole Tolerance | M7 |
| Blank Standard | DIN 6539 |
| Coating | TiAlN |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |

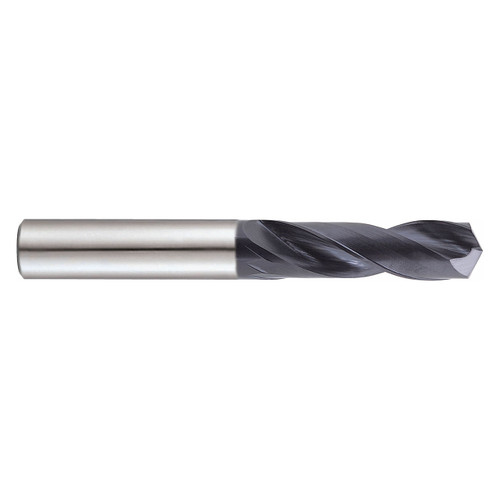

| Type | Dream Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
17/32"
Drill Bit Size (Decimal Inch):
0.5300"
Drill Bit Size (mm):
13.50mm
Flute Length (Inch):
2-1/8"
Flute Length (Decimal Inch):
2.1260"
Flute Length (mm):
107.00mm
Overall Length (Inch):
4-10/47"
Overall Length (Decimal Inch):
4.2126"
Overall Length (mm):
107.00mm
Material:
Carbide
Finish/Coating:
TiAlN
Cutting Direction:
Right
interval quantity:
1
