Product Specifications
| # Manufacturer Number | E9986020 |
| Diameter (Decimal Inch) | 0.3125" |
| Diameter (Inch) | 5/16" |
| Diameter (mm) | 7.94mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (mm) | 88.90mm |
| Length of Cut (Decimal Inch) | 0.7500" |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (mm) | 19.05mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 4 |
| Coating | Bright |
| Material | Premium HSS-PM |
| Cut Type | Center Cut |
| Shank Style | Flat |
| Series | E9986 |
| Cutting Direction | Right |
| Product Type | Square Double End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

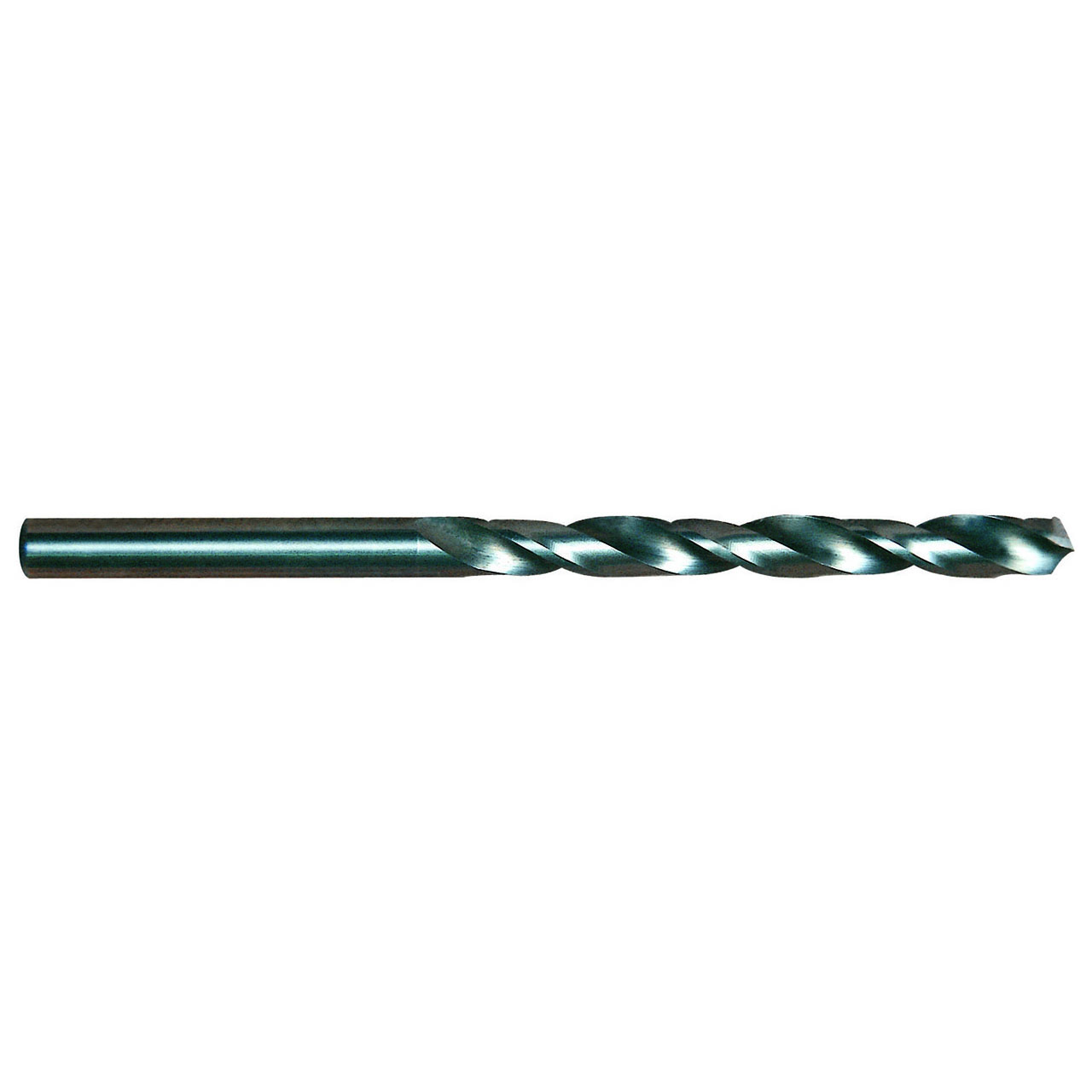

Brand:
YG1
Drill Bit Size (Wire):
#9
Drill Point Angle:
118 Degree
Overall Length (Inch):
3";Overall Length (Decimal Inch)=3.0000""
Overall Length (mm):
76.20mm
Cutting Direction:
Right
Material:
Carbide
Finish/Coating:
TiAlN
Coolant Through:
No
