Product Specifications
| # Manufacturer Number | EP20402F |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (Inch) | 5/8" |
| Diameter (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (mm) | 15.88mm |
| Overall Length (Decimal Inch) | 6.1250" |
| Overall Length (Inch) | 6-1/8" |
| Overall Length (mm) | 155.58mm |
| Length of Cut (Decimal Inch) | 1.6250" |
| Length of Cut (Inch) | 1-5/8" |
| Length of Cut (mm) | 41.28mm |
| LBS (Decimal Inch) | 4.0000" |
| LBS (Inch) | 4" |
| LBS (mm) | 101.60mm |
| Helix Angle (Degree) | 35 Degree |
| Number of Flute | 5 |
| Coating | TiAlN |
| Material | Premium HSS-PM |
| Cut Type | Center Cut |
| Shank Style | Flat |
| Series | E9921 |
| Cutting Direction | Right |
| Product Type | Roughing End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

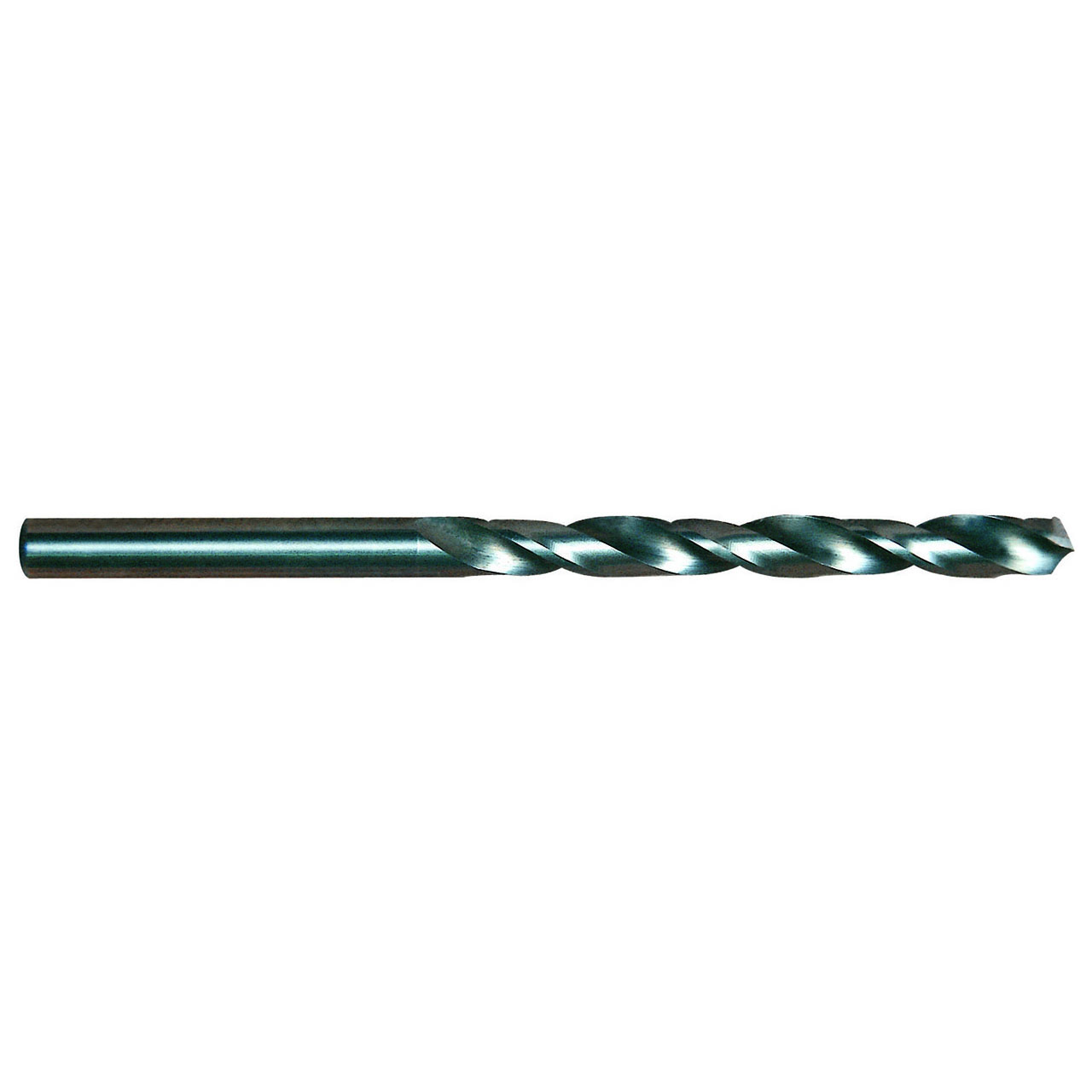

Brand:
YG1
Drill Point Angle:
118 Degree
Overall Length (Inch):
4-1/2";Overall Length (Decimal Inch)=4.5000""
Overall Length (mm):
114.30mm
Cutting Direction:
Right
Material:
Carbide
Finish/Coating:
TiAlN
Coolant Through:
No
