Product Specifications
| Diameter (Decimal Inch) | DH464014 |
| Diameter (Decimal Inch) | 0.2188" |
| Diameter (Inch) | 7/32" |
| Diameter (mm) | 5.56mm |
| Shank Diameter (Decimal Inch) | 0.2344" |
| Shank Diameter (Inch) | 15/64" |
| Shank Diameter (mm) | 5.95mm |
| Flute Length (Decimal Inch) | 1.9806" |
| Flute Length (Inch) | 1-57/64" |
| Flute Length (mm) | 48.02mm |
| Overall Length (Decimal Inch) | 3.9375" |
| Overall Length (Inch) | 3-15/16" |
| Overall Length (mm) | 100.01mm |
| Point Length (Decimal Inch) | 0.0398" |
| Point Length (mm) | 1.01mm |
| Point Angle | 140 Degree |
| Helix Angle | 30 Degree |
| Length/Diameter | 5 X D |
| Shank Tolerance | -.0001-.0005 |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Coolant Pressure | 20 Bar |
| Coating | TiAIN |
| Material | Carbide |
| Hole Tolerance | +0-.00071 |
| Application | PM |
| Cutting Direction | Right |

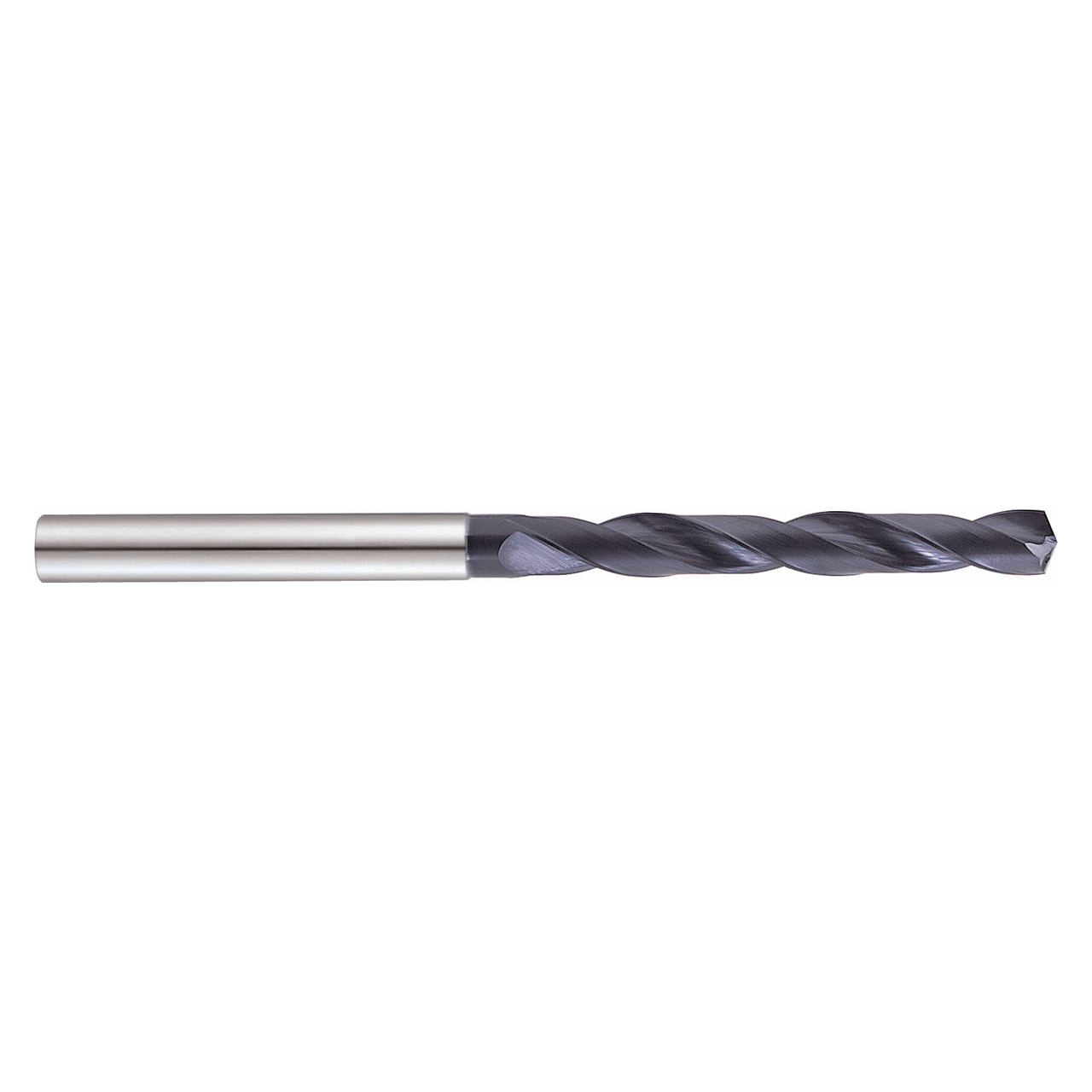

| Product Type | Dream Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
0.2188"
Drill Bit Size (Decimal Inch):
7/32"
Drill Bit Size (mm):
5.56mm
Drill Point Angle:
140 Degree
Flute Length (Inch):
1.9806"
Flute Length (Decimal Inch):
1-57/64"
Flute Length (mm):
48.02mm
Overall Length (Inch):
3.9375"
Overall Length (Decimal Inch):
3-15/16"
Overall Length (mm):
100.01mm
Material:
Carbide
Finish/Coating:
TiAIN
Cutting Direction:
Right
