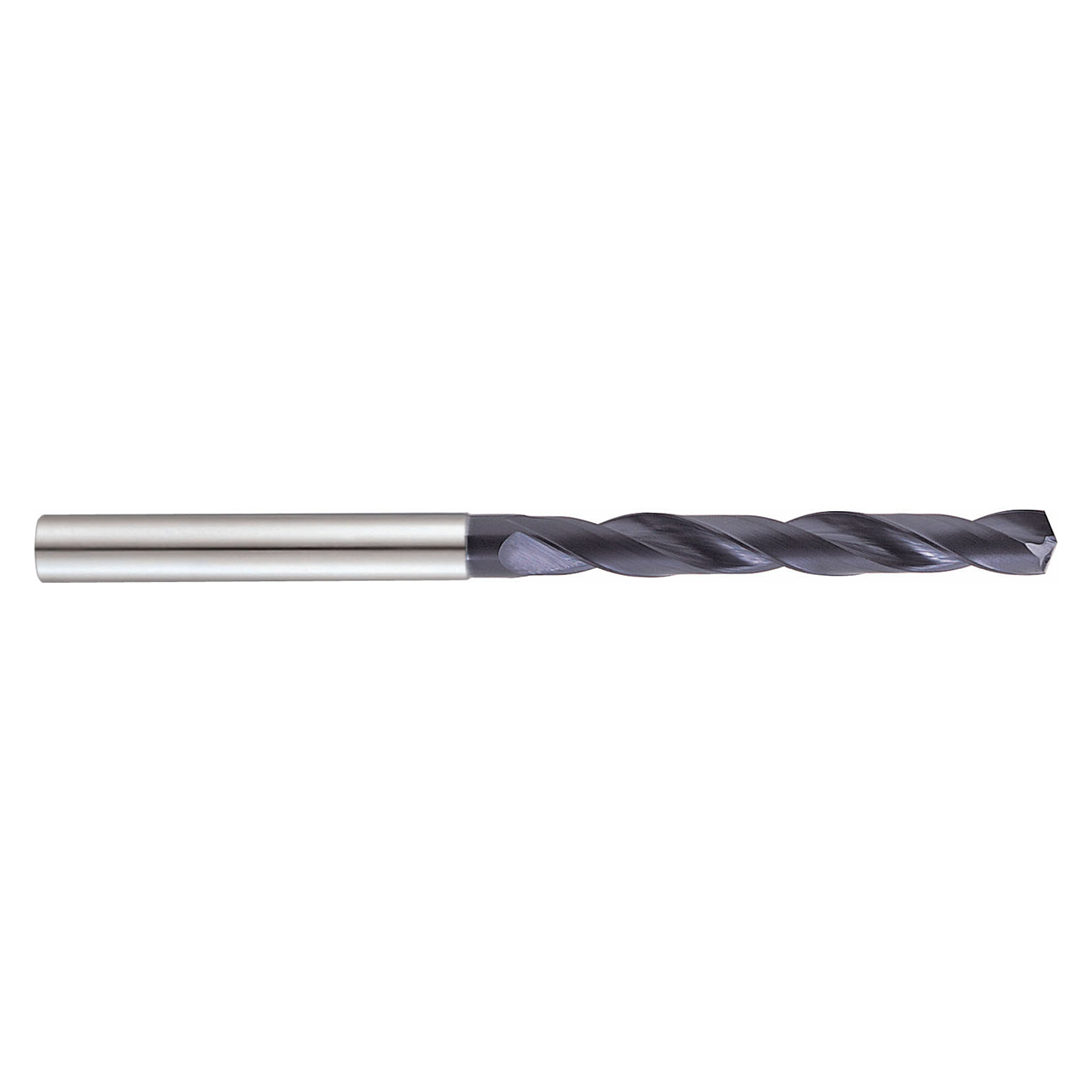

YG1 DH712206 | 0.2600" Diameter x 0.3125" Shank x 4.2969" OAL 2 Flute TiAlN Coated Carbide Dream Drill Bit

$132.11 $89.17
(You save $42.94)
Brand:
YG1
Flute Length (Inch):
2-13/64"
Flute Length (Decimal Inch):
2.2031"
Flute Length (mm):
109.14mm
Overall Length (Inch):
4-19/64"
Overall Length (Decimal Inch):
4.2969"
Overall Length (mm):
109.14mm
Material:
Carbide
Finish/Coating:
TiAlN
Cutting Direction:
Right
interval quantity:
1
SKU:
10030832
UPC:
Weight:
0.13 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products


Product Specifications
Diameter (Decimal Inch)DH712206
Diameter (Decimal Inch)0.2600"
Diameter (mm)6.53mm
Shank Diameter (Decimal Inch)0.3125"
Shank Diameter (mm)7.94mm
Flute Length (Decimal Inch)2.2031"
Flute Length (mm)55.96mm
Overall Length (Decimal Inch)4.2969"
Overall Length (mm)109.14mm
Point Length (Decimal Inch)0.0468"
Point Length (mm)1.19mm
Point Angle (Degree)140 Degree
Helix Angle (Degree)30 Degree
Length/Diameter5
Shank Toleranceh6
Coolant ThroughYes
Coolant Pressure20 Bar
Hole Tolerance+0-.00087
CoatingTiAlN
MaterialCarbide
Cutting DirectionRight
ApplicationP
TypeDream Drill Bit
