Product Specifications
| Diameter (Decimal Inch) | DH722024 |
| Diameter (Decimal Inch) | 0.3800" |
| Diameter (Inch) | 3/8" |
| Diameter (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Flute Length (Decimal Inch) | 3.1563" |
| Flute Length (Inch) | 3-5/32" |
| Flute Length (mm) | 80.17mm |
| Overall Length (Decimal Inch) | 5.3594" |
| Overall Length (Inch) | 5-23/64" |
| Overall Length (mm) | 136.13mm |
| Point Length (Decimal Inch) | 0.0682" |
| Point Length (mm) | 1.73mm |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Length/Diameter | 5 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Hole Tolerance | +0-.00087 |
| Coating | TiAlN |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |

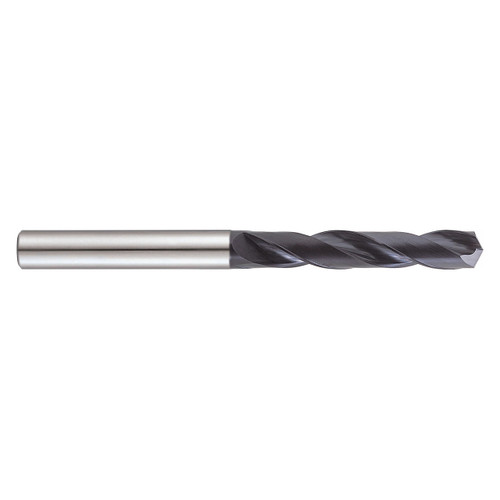

| Type | Dream Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
3/8"
Drill Bit Size (Decimal Inch):
0.3800"
Drill Bit Size (mm):
9.53mm
Flute Length (Inch):
3-5/32"
Flute Length (Decimal Inch):
3.1563"
Flute Length (mm):
136.13mm
Overall Length (Inch):
5-23/64"
Overall Length (Decimal Inch):
5.3594"
Overall Length (mm):
136.13mm
Material:
Carbide
Finish/Coating:
TiAlN
Cutting Direction:
Right
