Product Specifications
| # Manufacturer Number | DL605107 |
| Diameter (Decimal Inch) | 0.2610" |
| Diameter (Inch) | 6/23" |
| Diameter (mm) | 6.63mm |
| Shank Diameter (Decimal Inch) | 0.2610" |
| Shank Diameter (Inch) | 6/23" |
| Shank Diameter (mm) | 6.63mm |
| Overall Length (Decimal Inch) | 12.0000" |
| Overall Length (Inch) | 12" |
| Overall Length (mm) | 304.80mm |
| Flute Length (Decimal Inch) | 2.8750" |
| Flute Length (Inch) | 2-7/8" |
| Flute Length (mm) | 73.03mm |
| Point Length (Decimal Inch) | 0.0541" |
| Point Length (mm) | 1.37mm |
| Point Angle (Degree) | 135 Degree |
| 30 Degree | 30 Degree |
| Number of Flutes | 2 |
| Coating | Bright |
| Material | HSS Co5 |
| Application | P |
| Cutting Direction | Right |

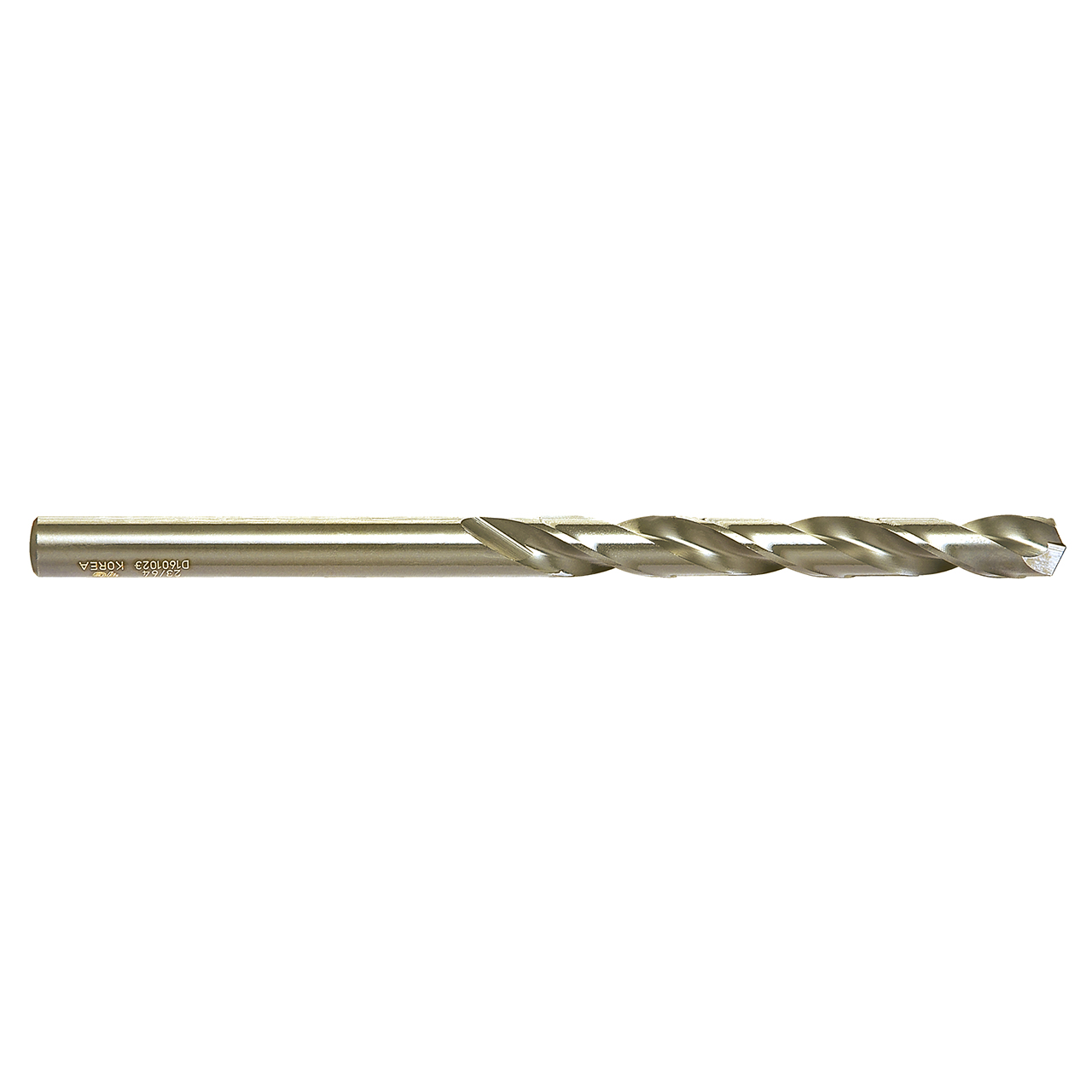

| Product Type | Aircraft Extension Drill |
| Drill Bit Size (Letter) | G |
