Product Specifications
| Manufacturer Part Number | DN514023 |
| Diameter (Inch) | 23/64" |
| Diameter (Decimal Inch) | 0.3594" |
| Diameter (mm) | 9.13mm |
| Shank Diameter (Inch) | 23/64" |
| Shank Diameter (Decimal Inch) | 0.3594" |
| Shank Diameter (mm) | 9.13mm |
| Flute Length (Inch) | 1-3/4" |
| Flute Length (Decimal Inch) | 1.7500" |
| Flute Length (mm) | 44.45mm |
| Overall Length (Inch) | 3-1/16" |
| Overall Length (Decimal Inch) | 3.0625" |
| Overall Length (mm) | 77.79mm |
| Point Length (Decimal Inch) | 0.0838" |
| Point Length (mm) | 2.13mm |
| Number of Flute | 2 |
| Point Angle (Degree) | 130 Degree |
| Helix Angle (Degree) | 38 Degree |
| Cutting Direction | Right Hand |
| Material | HSS-E |
| Coating | TiN |

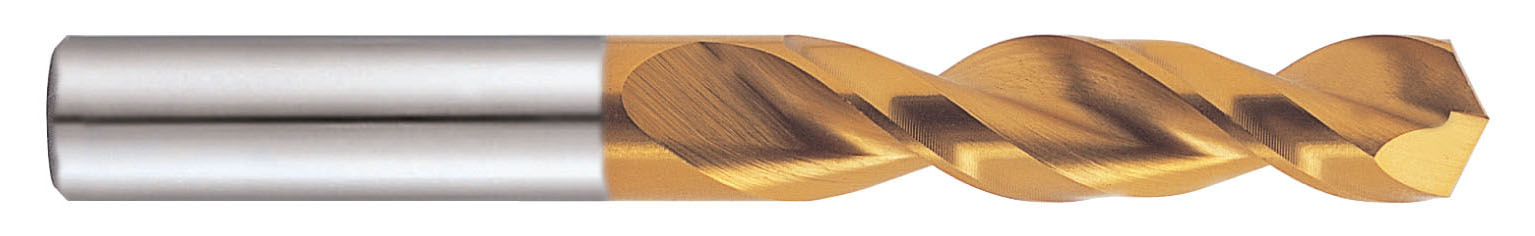

| Product Type | Screw Machine Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Flute Length (Inch):
1-3/4"
Flute Length (Decimal Inch):
1.7500"
Flute Length (mm):
44.45mm
Overall Length (Inch):
3-1/16"
Overall Length (Decimal Inch):
3.0625"
Overall Length (mm):
77.79mm
Material:
HSS-E
Finish/Coating:
TiN
