Product Specifications
| Manufacturer Part Number | DX517008 |
| Diameter (Inch) | 1/8" |
| Diameter (Decimal Inch) | 0.1250" |
| Diameter (mm) | 3.18mm |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (mm) | 3.18mm |
| Flute Length (Inch) | 2-3/4" |
| Flute Length (Decimal Inch) | 2.7500" |
| Flute Length (mm) | 69.85mm |
| Overall Length (Inch) | 5-1/8" |
| Overall Length (Decimal Inch) | 5.1250" |
| Overall Length (mm) | 130.18mm |
| Point Length (Decimal Inch) | 0.0291" |
| Point Length (mm) | 0.74mm |
| Number of Flute | 2 |
| Point Angle (Degree) | 130 Degree |
| Helix Angle (Degree) | 38 Degree |
| Cutting Direction | Right Hand |
| Material | HSS-E |
| Coating | TiCN |

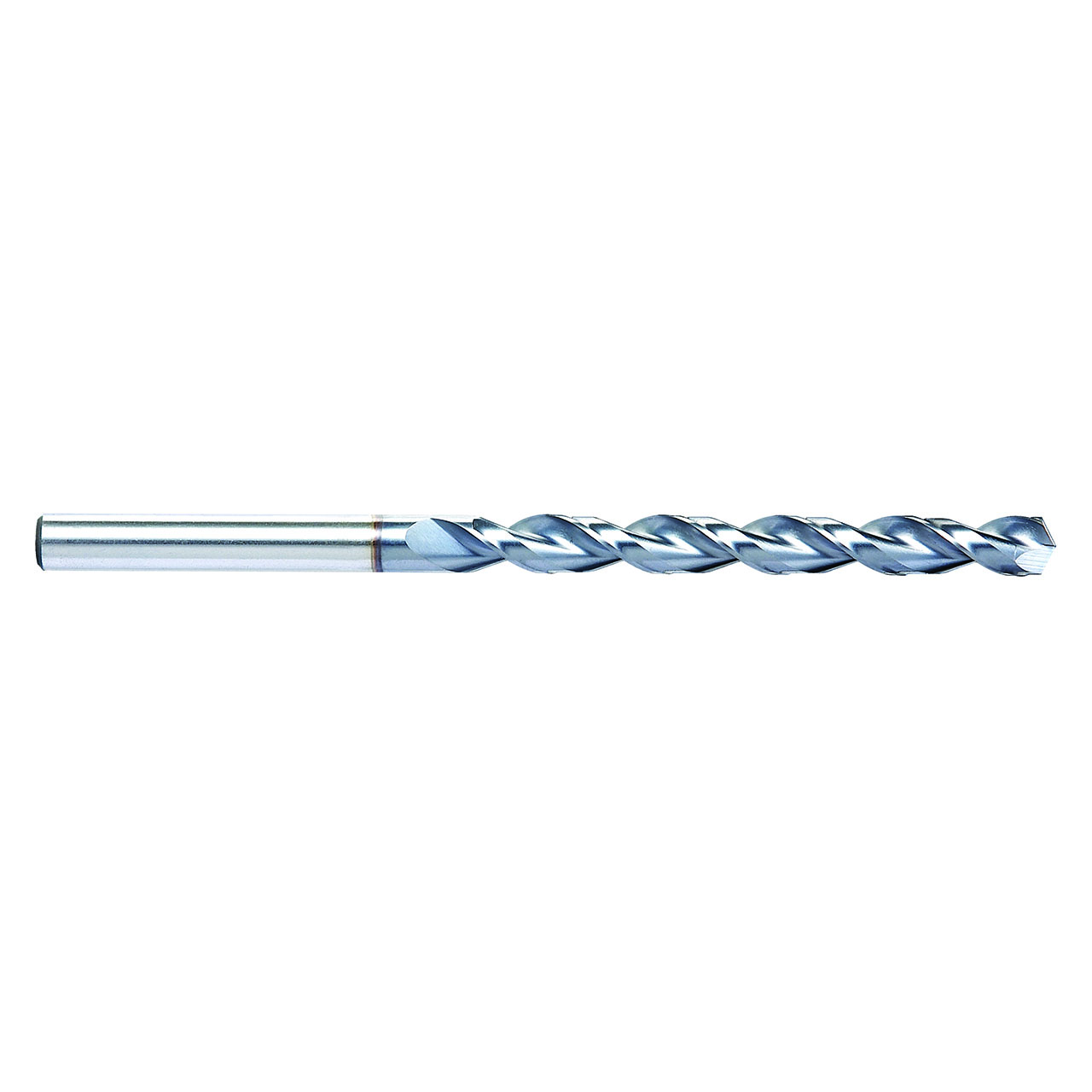

| Product Type | Taper Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Flute Length (Inch):
2-3/4"
Flute Length (Decimal Inch):
2.7500"
Flute Length (mm):
69.85mm
Overall Length (Inch):
5-1/8"
Overall Length (Decimal Inch):
5.1250"
Overall Length (mm):
130.18mm
Material:
HSS-E
Finish/Coating:
TiCN
interval quantity:
1
