Product Specifications
| Manufacturer Part Number | DX517019 |
| Diameter (Inch) | 19/64" |
| Diameter (Decimal Inch) | 0.2969" |
| Diameter (mm) | 7.54mm |
| Shank Diameter (Inch) | 19/64" |
| Shank Diameter (Decimal Inch) | 0.2969" |
| Shank Diameter (mm) | 7.54mm |
| Flute Length (Inch) | 4" |
| Flute Length (Decimal Inch) | 4.0000" |
| Flute Length (mm) | 101.60mm |
| Overall Length (Inch) | 6-3/8" |
| Overall Length (Decimal Inch) | 6.3750" |
| Overall Length (mm) | 161.93mm |
| Point Length (Decimal Inch) | 0.0692" |
| Point Length (mm) | 1.76mm |
| Number of Flute | 2 |
| Point Angle (Degree) | 130 Degree |
| Helix Angle (Degree) | 38 Degree |
| Cutting Direction | Right Hand |
| Material | HSS-E |
| Coating | TiCN |

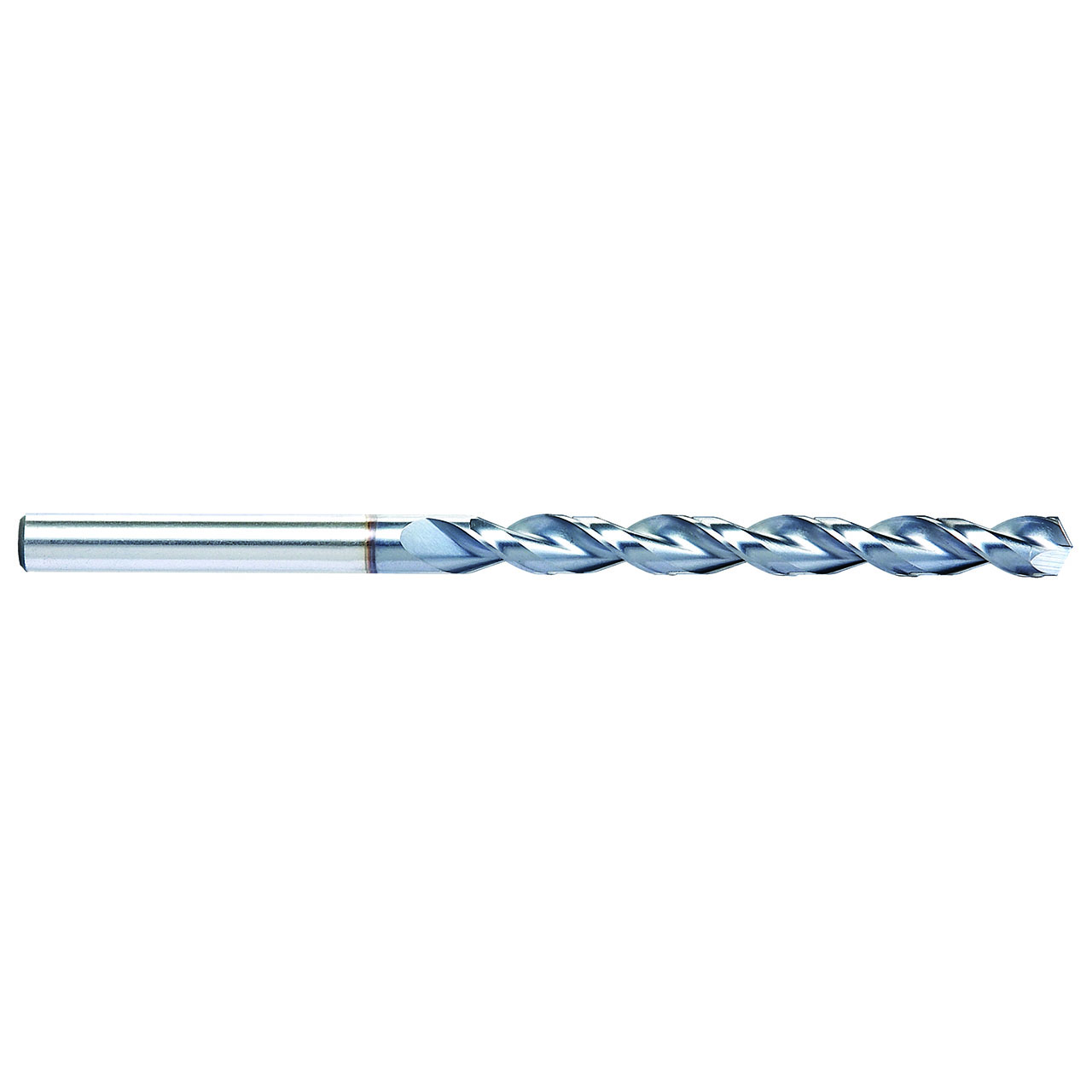

| Product Type | Taper Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Flute Length (Inch):
4"
Flute Length (Decimal Inch):
4.0000"
Flute Length (mm):
101.60mm
Overall Length (Inch):
6-3/8"
Overall Length (Decimal Inch):
6.3750"
Overall Length (mm):
161.93mm
Material:
HSS-E
Finish/Coating:
TiCN
