Product Specifications
| Manufacturer Part Number | DX517029 |
| Diameter (Inch) | 29/64" |
| Diameter (Decimal Inch) | 0.4531" |
| Diameter (mm) | 11.51mm |
| Shank Diameter (Inch) | 29/64" |
| Shank Diameter (Decimal Inch) | 0.4531" |
| Shank Diameter (mm) | 11.51mm |
| Flute Length (Inch) | 4-3/4" |
| Flute Length (Decimal Inch) | 4.7500" |
| Flute Length (mm) | 120.65mm |
| Overall Length (Inch) | 7-1/2" |
| Overall Length (Decimal Inch) | 7.5000" |
| Overall Length (mm) | 190.50mm |
| Point Length (Decimal Inch) | 0.1056" |
| Point Length (mm) | 2.68mm |
| Number of Flute | 2 |
| Point Angle (Degree) | 130 Degree |
| Helix Angle (Degree) | 38 Degree |
| Cutting Direction | Right Hand |
| Material | HSS-E |
| Coating | TiCN |

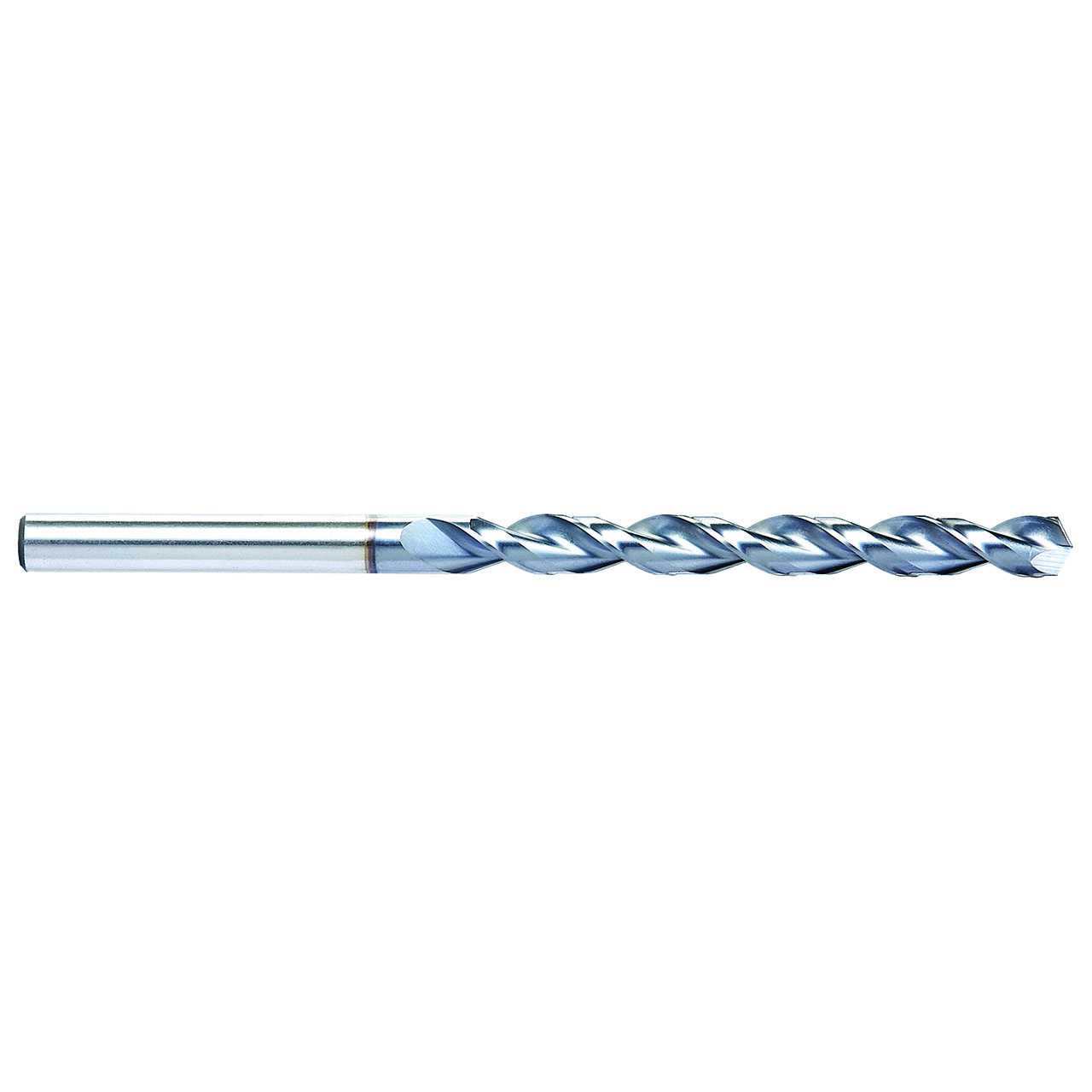

| Product Type | Taper Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Flute Length (Inch):
4-3/4"
Flute Length (Decimal Inch):
4.7500"
Flute Length (mm):
120.65mm
Overall Length (Inch):
7-1/2"
Overall Length (Decimal Inch):
7.5000"
Overall Length (mm):
190.50mm
Material:
HSS-E
Finish/Coating:
TiCN
interval quantity:
1
