Product Specifications

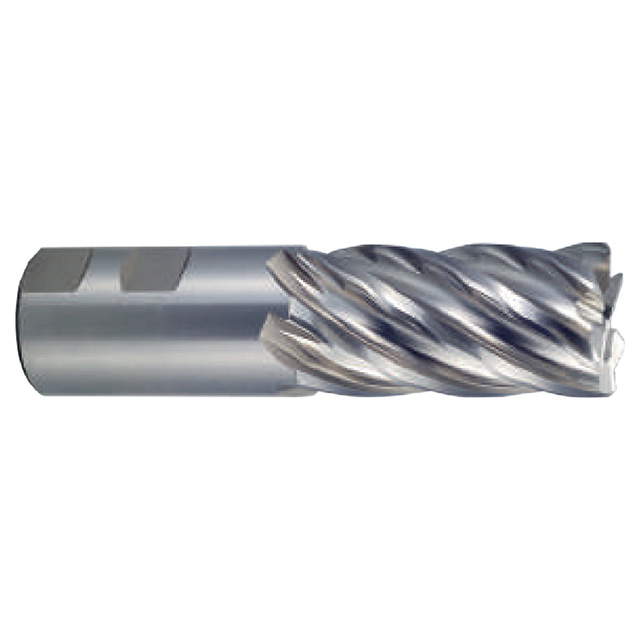

| Manufacturer Part Number | E2F64910 |
| Series | E2F64 |
| Diameter (Inch) | 1-1/4" |
| Diameter (Decimal Inch) | 1.2500" |
| Diameter (mm) | 31.75mm |
| Shank Diameter (Inch) | 1-1/4" |
| Shank Diameter (Decimal Inch) | 1.2500" |
| Shank Diameter (mm) | 31.75mm |
| Length Of Cut (Inch) | 3" |
| Length Of Cut (Decimal Inch) | 3.0000" |
| Length Of Cut (mm) | 76.20mm |
| Overall Length (Inch) | 5-1/2" |
| Overall Length (Decimal Inch) | 5.5000" |
| Overall Length (mm) | 139.70mm |
| Chamfer Size (Inch) | 1/25" |
| Chamfer Size (Decimal Inch) | 0.0400" |
| Chamfer Size (mm) | 1.02mm |
| Number of Flutes | 6 |
| Helix Angle | 35 Degree |
| Shank Style | Flat |
| Coating | Bright |
| Material | HSSCo8 |
| Cut Type | Center Cut |
| Type | Square End Mill |
| Cutting Direction | Right |
| Application | S |
