Product Specifications
| Manufacturer Part Number | E5I04020 |
| Mill Diameter (Inch) | 5/16" |
| Mill Diameter (Decimal Inch) | 0.3125" |
| Mill Diameter (mm) | 7.94mm |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (Decimal Inch) | 0.7500" |
| Length of Cut (mm) | 19.05mm |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (mm) | 88.90mm |
| Ball Nose (Decimal Inch) | 0.1563" |
| Ball Nose (Inch) | 5/32" |
| Ball Nose (mm) | 3.97mm |
| Helix | 30 Degree |
| Series | E5I04 |
| Coated | Bright |
| Material | Carbide |

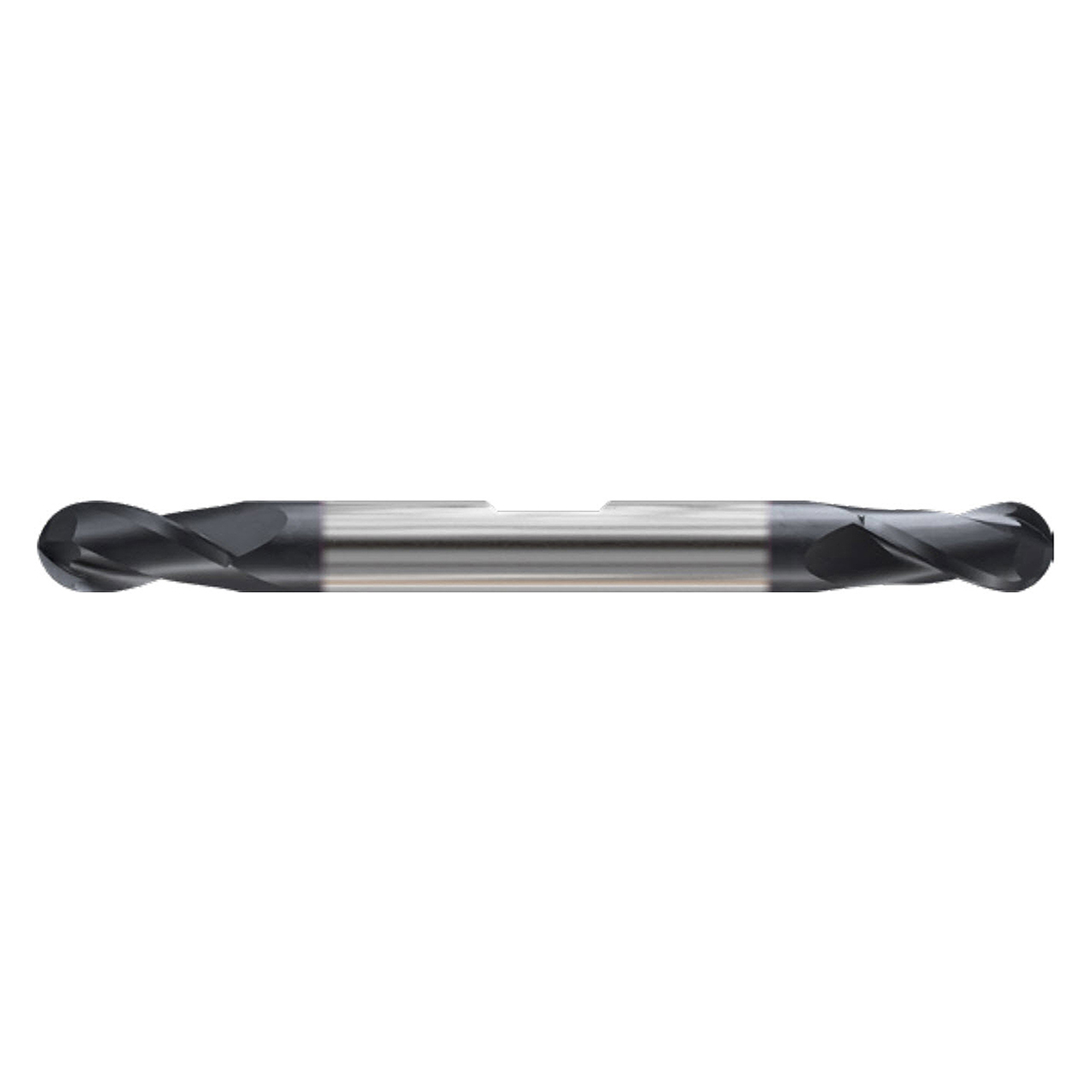

| Type | Ball Nose Double End |
| Corner Type | Ball Nose |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Coating:
Bright
Single or Double End:
Double End
Helix Angle:
30 Degree
interval quantity:
1
