Product Specifications
| Manufacturer Part Number | EIB05904 |
| Diameter (Inch) | 1/4" |
| Diameter (Decimal Inch) | 0.2500" |
| Diameter (mm) | 6.35mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (Decimal Inch) | 0.7500" |
| Length of Cut (mm) | 19.05mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (mm) | 63.50mm |
| Corner Radius (Decimal Inch) | 0.0300" |
| Corner Radius (Inch) | 3/100" |
| Corner Radius (mm) | 0.76mm |
| Number of Flute | 4 |
| Helix Angle (Degree) | 30 Degree |
| Cutting Direction | Right Hand |
| Shank Style | Plain |
| Material | Carbide |
| Coating | Diamond |

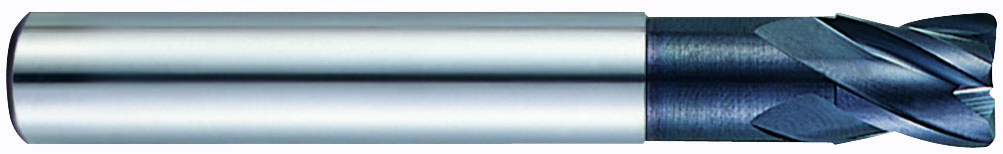

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Mill Diameter (mm):
6.35mm
Number of Flutes:
4
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Material:
Carbide
Overall Length (Inch):
2.5000"
Overall Length (Decimal Inch):
2-1/2"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
Diamond
Cutting Direction:
Right Hand
Corner Radius (Inch):
3/100"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
