Product Specifications

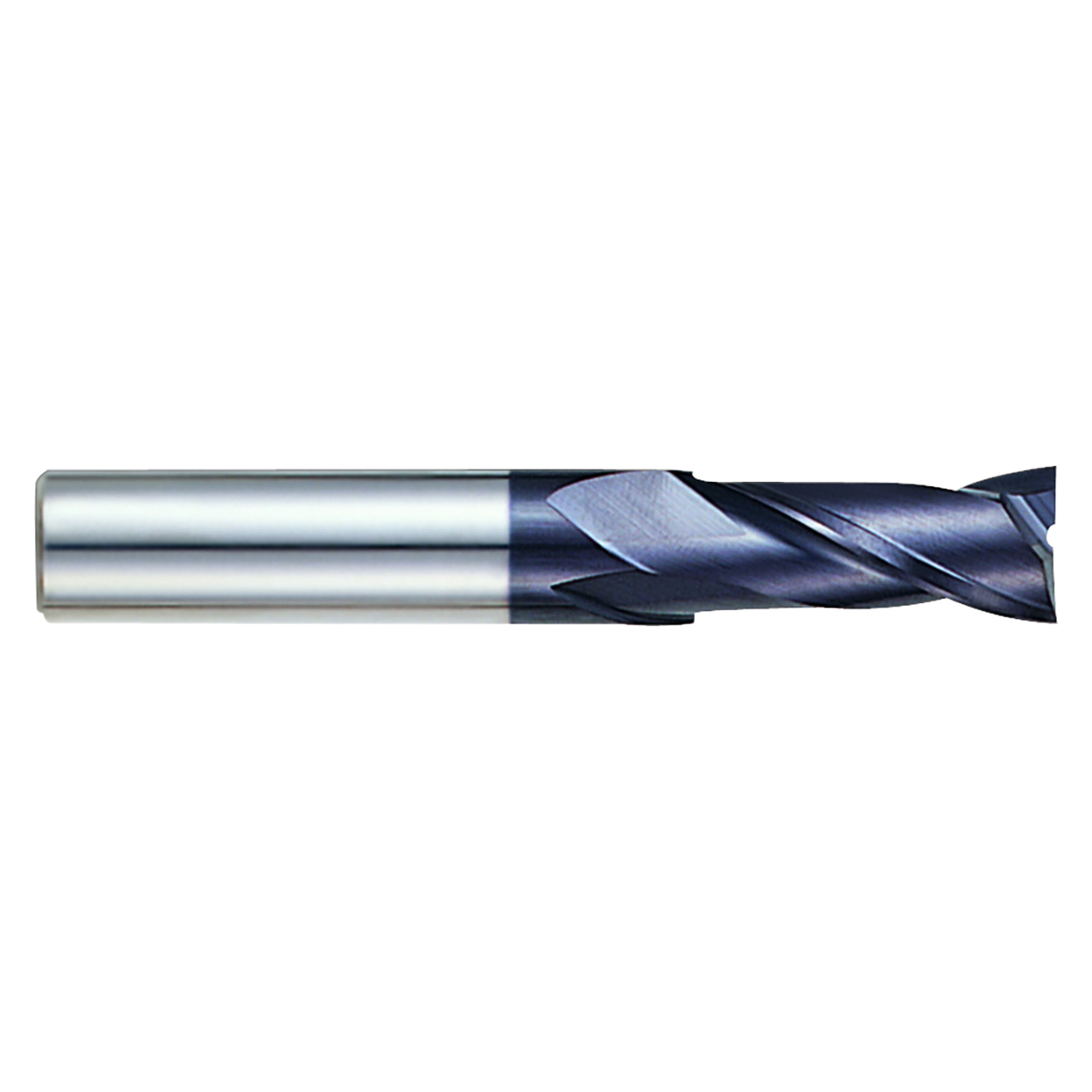

| EDP Number | EM810100 |
| Diameter (Decimal Inch) | 0.3900" |
| Diameter (Inch) | 37/94" |
| Diameter (mm) | 10.00mm |
| Shank Diameter (Decimal Inch) | 0.3937" |
| Shank Diameter (Inch) | 37/94" |
| Shank Diameter (mm) | 10.00mm |
| Length of Cut (Decimal Inch) | 0.8661" |
| Length of Cut (Inch) | 13/15" |
| Length of Cut (mm) | 22.00mm |
| Overall Length (Decimal Inch) | 2.7559" |
| Overall Length (mm) | 70.00mm |
| Overall Length (Inch) | 2-65/86" |
| Number of Flutes | 2 |
| Series | EM810 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Short |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Produce Type | Square End Mill |
